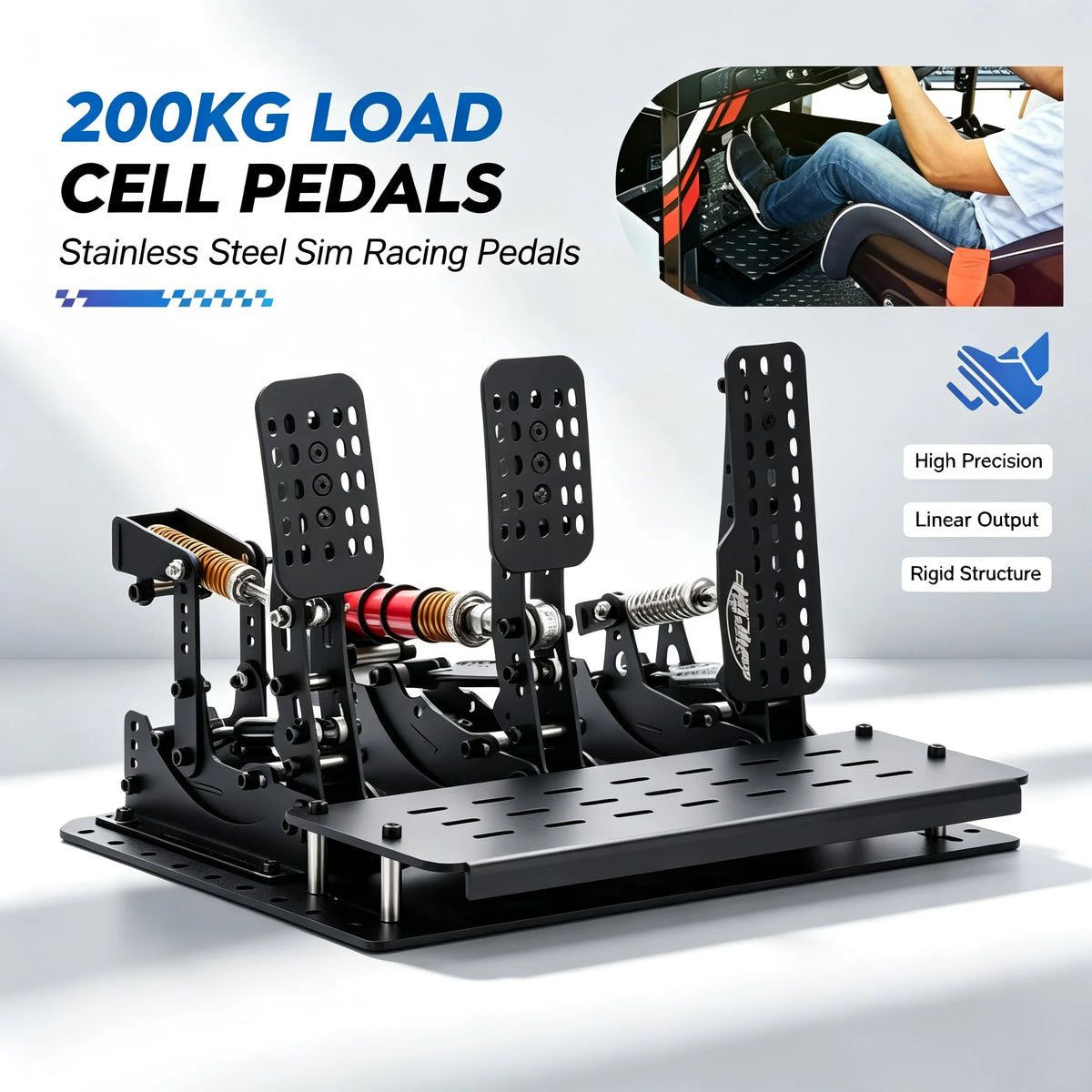

The SimRuito Load Cell Racing Pedals bring real-car pedal feel to your PC sim rig. Built on a black steel frame with 3mm laser-cut pedal faces in your choice of black or polished stainless silver, the set pairs a 200KG load cell brake with an intelligent USB control box and the SimRuito Paddock 2.0.1 software, so you can tune brake force, curves, and deadzones without touching the hardware.

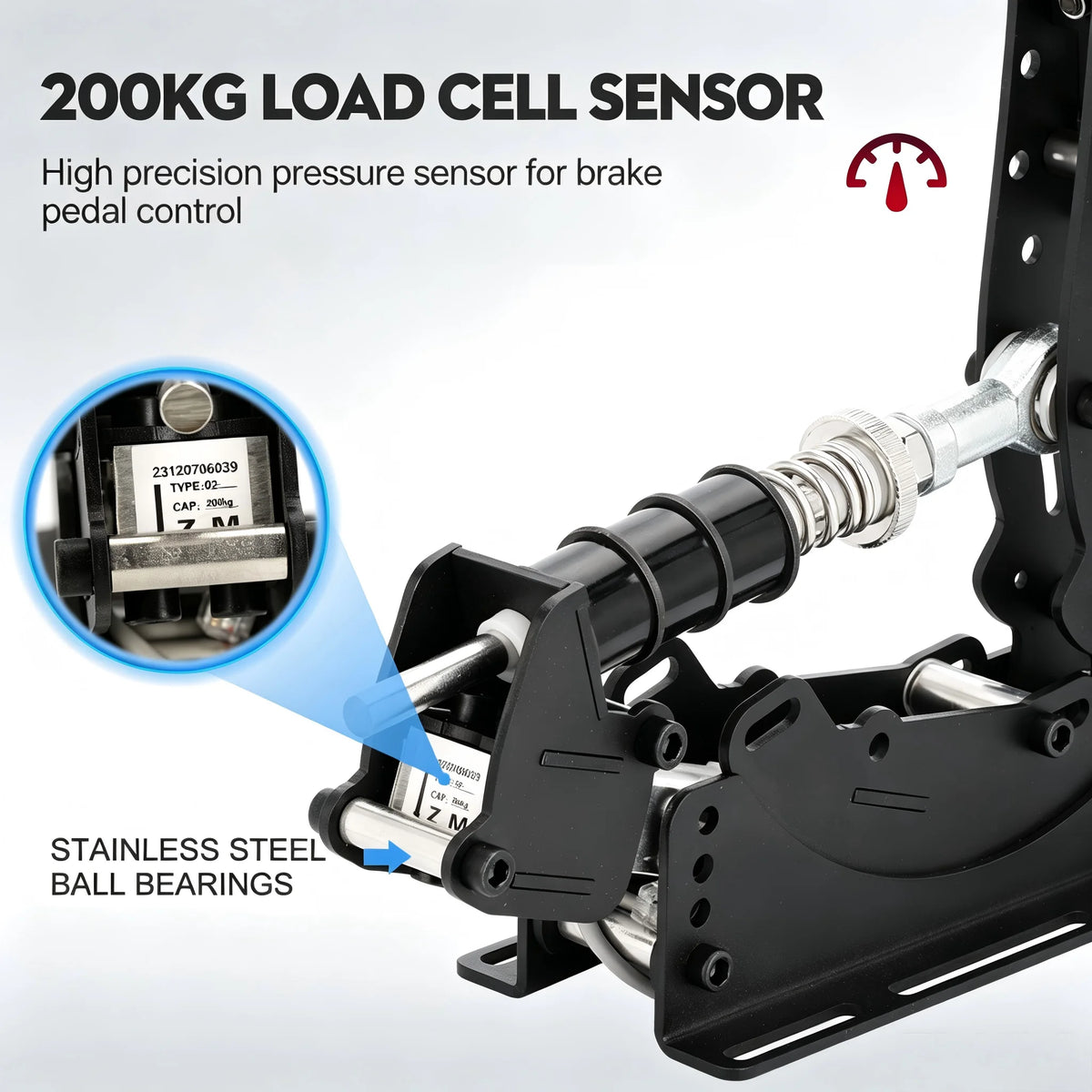

- 200KG load cell brake a 200KG pressure sensor reads actual pedal force rather than travel, helping you build true brake muscle memory with 1-200KG adjustment in 0.1KG steps.

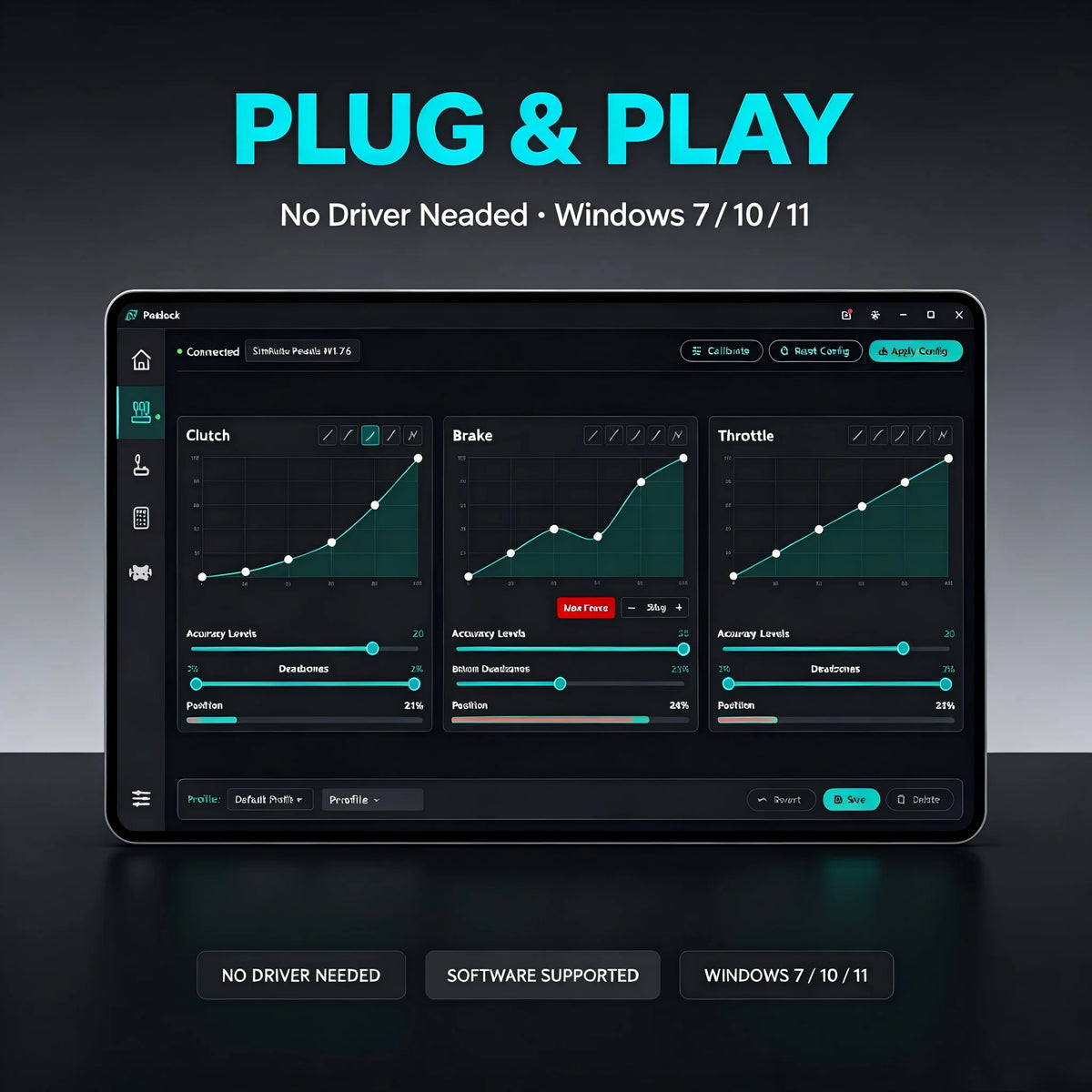

- Tune it all in software SimRuito Paddock 2.0.1 adjusts force and response curves instantly with no hardware changes, plus a new Auto Save Config option, Light/Dark themes, and lower memory use.
- Now with Linux support a dedicated Linux download joins Windows support for the Paddock software.
- Fully adjustable pedals throttle, brake, and clutch each offer adjustable stroke and damping, with adjustable pedal-face height on the brake and clutch.
- Built to last 3mm laser-cut pedal faces, available in black or ground-and-polished stainless silver, ride on high-precision stainless steel bearings for smooth, quiet, low-friction travel.
- Ergonomic, race-inspired design arched brake and clutch pedal faces follow the shape of real racing pedals for a more comfortable, natural foot feel.
- Plug and play on PC the intelligent control box with automatic calibration connects over USB with no driver installation required.
- Ready for every discipline F1, GT, rally, and road cars in titles like Assetto Corsa, EA Sports WRC, Dirt Rally, Forza Motorsport, Forza Horizon 5, and Project CARS.
Specifications
| Spec | Detail |
|---|---|
| Brake Sensor | 200KG load cell (pressure sensor) |
| Brake Force Range | 1-200KG, adjustable in 0.1KG increments |
| Pedal Material | 3mm laser-cut pedal faces; black steel frame |
| Color Options | Black or Silver (polished stainless steel) pedal faces |
| Bearings | High-precision stainless steel bearings |
| Throttle Adjustments | Stroke, damping |
| Brake Adjustments | Stroke, damping, pedal-face height; imported rubber elastomer |
| Clutch Adjustments | Stroke, damping, pedal-face height |
| Connection | USB via SimRuito intelligent control box with automatic calibration |
| Compatibility | PC (Windows; Linux supported by Paddock software). Not compatible with PlayStation, Xbox, or Mac. |
| Software | SimRuito Paddock 2.0.1 - force/curve tuning, deadzones, Auto Save Config, Light/Dark theme |
| Clutch / Brake Dimensions | 248 × 168 × 79 mm (H × L × W) |
| Throttle Dimensions | 240 × 168 × 79 mm (H × L × W) |

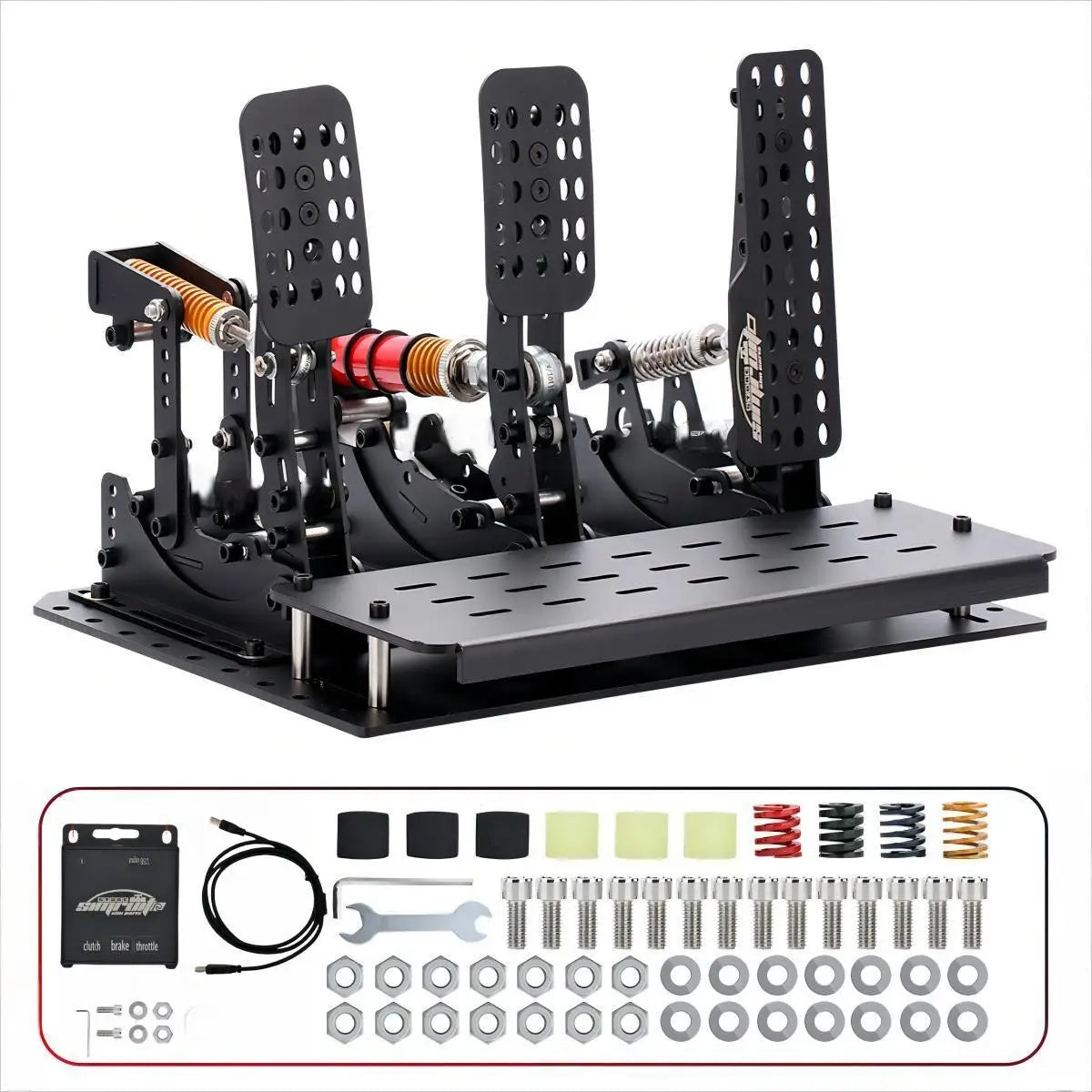

What's Included
Contents depend on the configuration selected. A complete 3-pedal set includes:
- 1 × Throttle Pedal
- 1 × Load Cell Brake Pedal
- 1 × Clutch Pedal
- 1 × SimRuito Intelligent Control Box
- 1 × USB Cable
- 6 × Brake Elastomers (assorted hardness)
- 4 × Tuning Springs (assorted rates)
- 1 × Hex Key
- 1 × Wrench
- Mounting Bolts, Nuts, and Washers
2-pedal configurations include the throttle and brake only. Hydraulic dampers are an optional upgrade and are sold separately.
