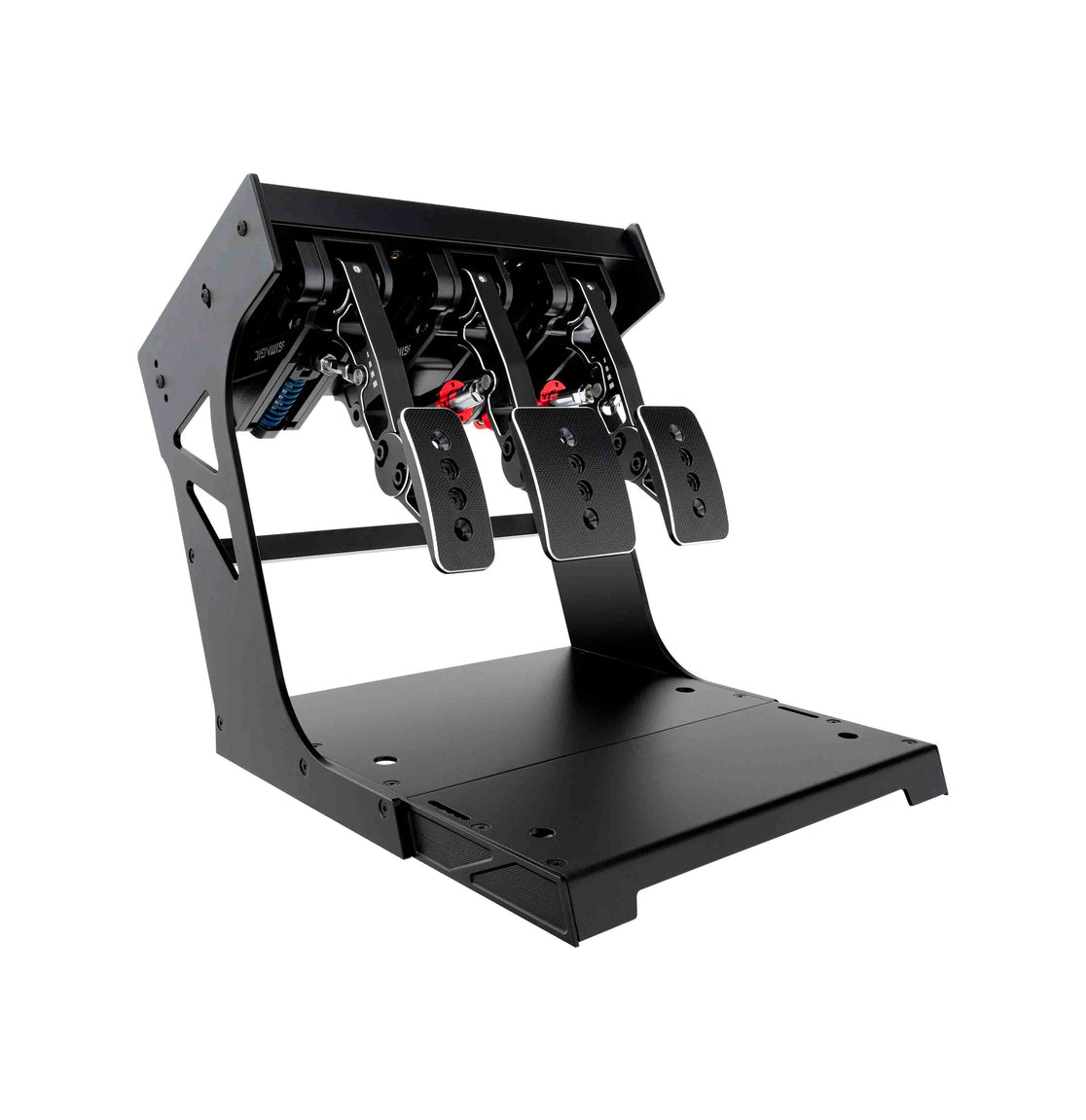

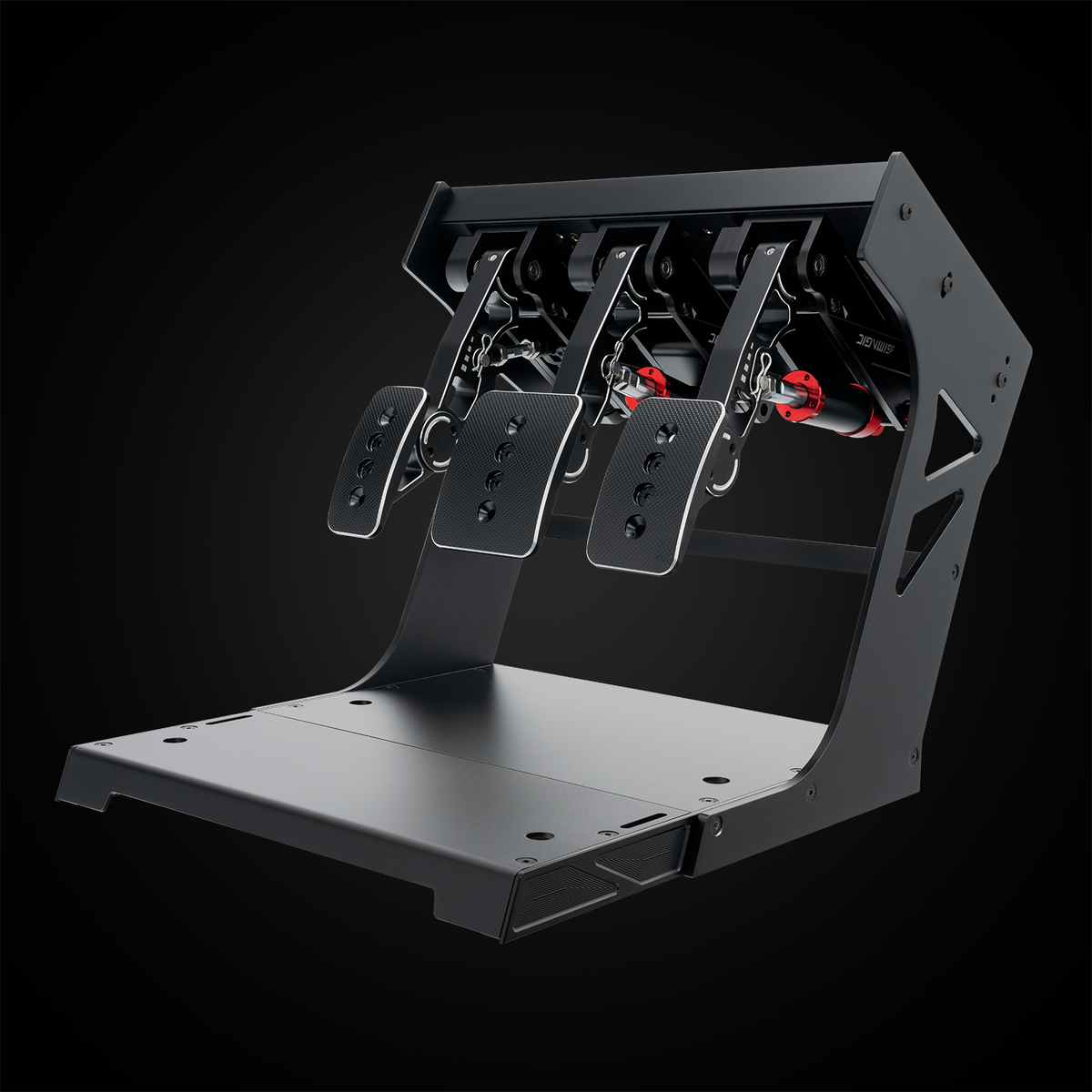

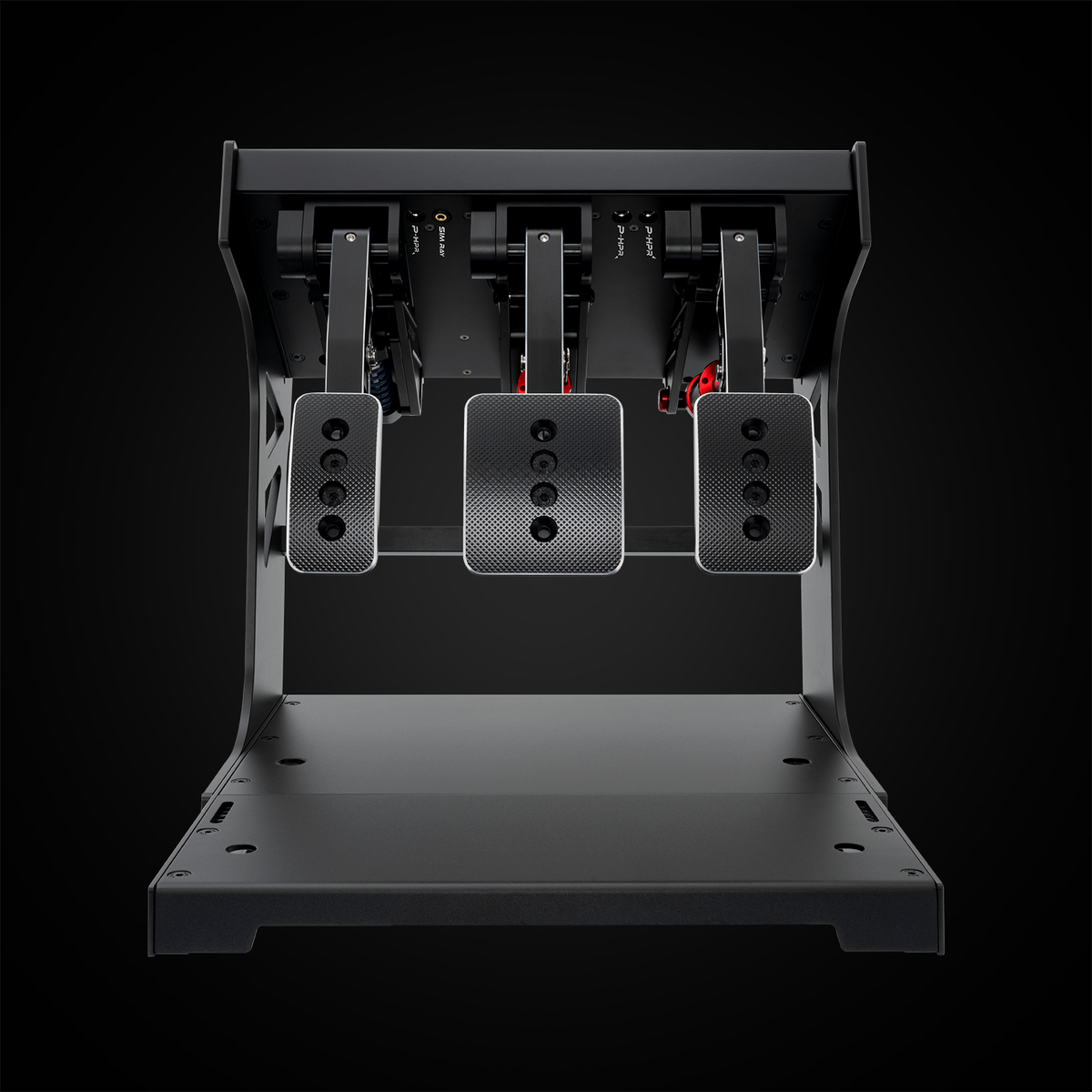

The SIMAGIC P1000i is a three-pedal inverted set built for sim racers who want the driving position of a real race car. The pedals hang from above, the way they do in GT and open-wheel cars, and pair a 100 kg load cell brake with Hall-effect throttle and clutch sensors. Every pedal is CNC-machined aluminum and fully adjustable, so you can tune feel, travel, and position to match your rig and driving style.
See the SIMAGIC P1000i Inverted Pedals in action
- True race-car layout the inverted configuration replicates real-world foot placement for a more authentic, ergonomic driving position.
- 100 kg load cell brake pressure-based braking delivers a progressive, realistic feel with adjustable brake force for precise control in heavy braking zones.
- Hall-effect throttle & clutch non-contact sensors provide smooth, consistent inputs with no wear over time.
- 12-bit precision 4096-step resolution on every pedal for accurate, repeatable inputs.
- Fully adjustable tune travel, spring force, linearity, brake force, deadzones, and pedal angle/position.
- Built to last CNC aluminum alloy construction with anodized aluminum pedal plates stands up to long, intense sessions.
- Plug into PC or wheelbase connect via USB to your PC or directly to a SIMAGIC wheelbase through the CAN-Bus port.
- Upgrade-ready supports the optional SIMAGIC haptic pedal reactor and hydraulic brake cylinder.
Specifications
| Spec | Detail |
|---|---|
| Pedal Layout | Inverted, 3-pedal (brake, throttle, clutch) |
| Brake Sensor | Load cell (100 kg rating) + Hall angle sensor |
| Throttle Sensor | Hall angle sensor |
| Clutch Sensor | Hall angle sensor |
| Resolution | 12-bit (4096) |
| Brake System | Non-hydraulic (hydraulic cylinder available as optional upgrade) |
| Adjustability | Travel, spring force (clutch/brake), linearity, brake force, deadzones, angle/position |
| Materials | CNC aluminum alloy, anodized aluminum pedal plates |
| Connectivity | PC (USB), SIMAGIC wheelbase (CAN-Bus port) |
| Dimensions | 334.8 × 336 × 267 mm (compact) / 348 × 489.8 × 368.5 mm (extended) |
| Weight | 5.65 kg – 7.60 kg depending on configuration |
| Optional Add-Ons | Haptic pedal reactor, hydraulic brake cylinder |
What's Included
- 1 × P1000i Brake Pedal (Load Cell)
- 1 × P1000i Throttle Pedal
- 1 × P1000i Clutch Pedal
- 1 × Pedal Control Box
- 1 × Inversion Kit
- 1 × USB Data Cable
- 1 × Heel-Stop Barrel
- 1 × Throttle Spring
- 1 × Set of Clutch Pedal Springs
- 1 × Set of Rubber Pads
- 1 × Mounting Screw Pack
Warranty & Support
The SIMAGIC P1000i is covered by a 12-month manufacturer warranty from the date of purchase against defects in components, materials, or workmanship under normal use. Vision Velocity Tech also backs every order with our standard return and refund coverage. Full policy details, timelines, and eligibility are outlined on our Return and Refund Policy page.
Need help with setup, calibration, or a warranty claim? Reach our support team directly.
