Real-world braking feel, brought to your rig.

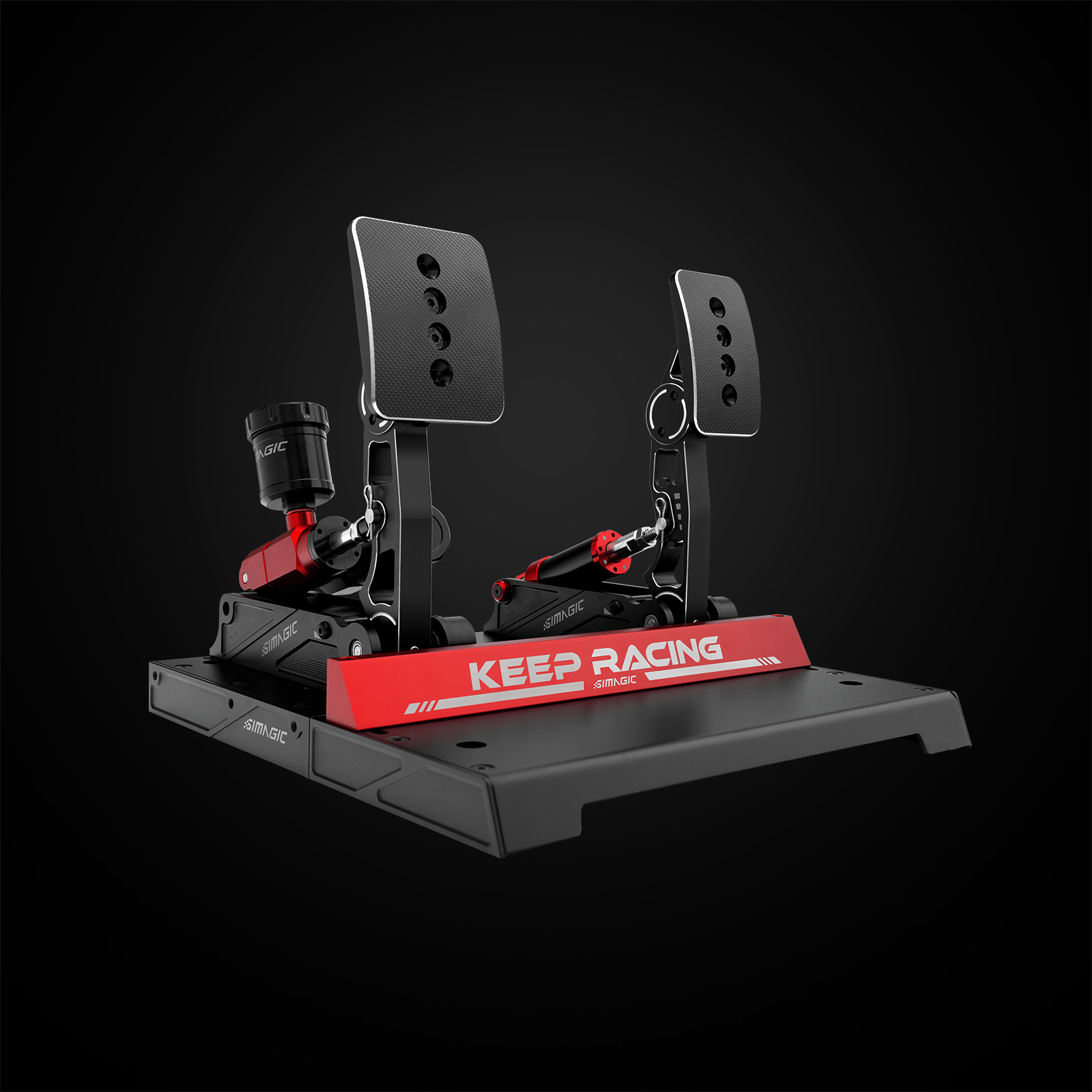

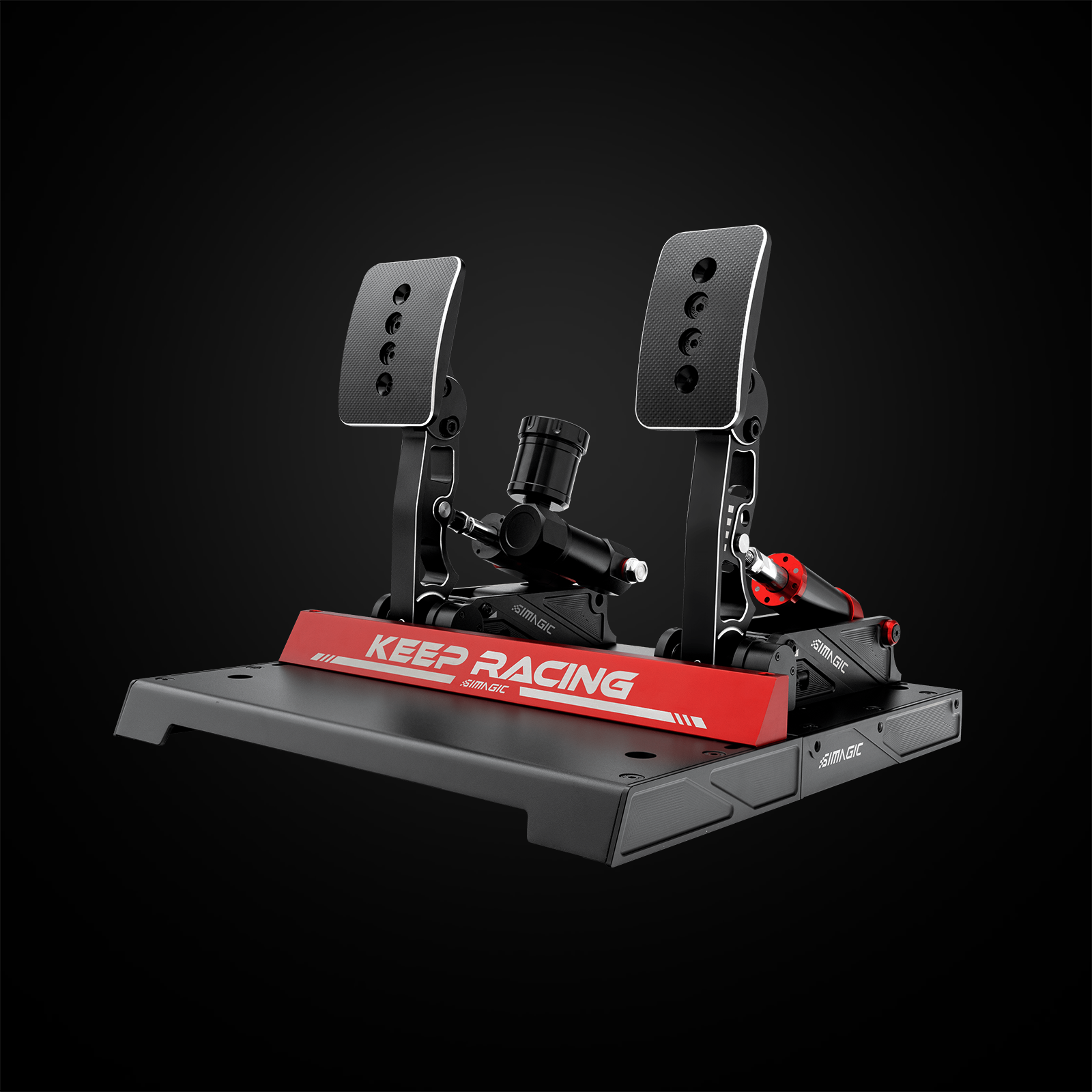

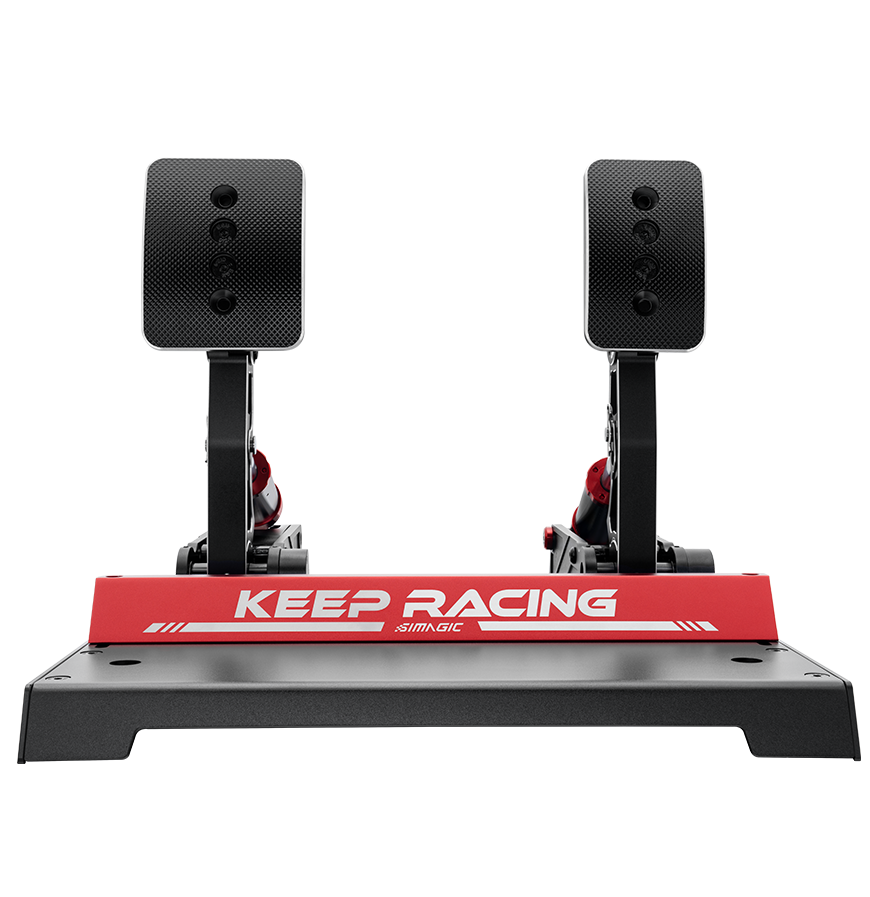

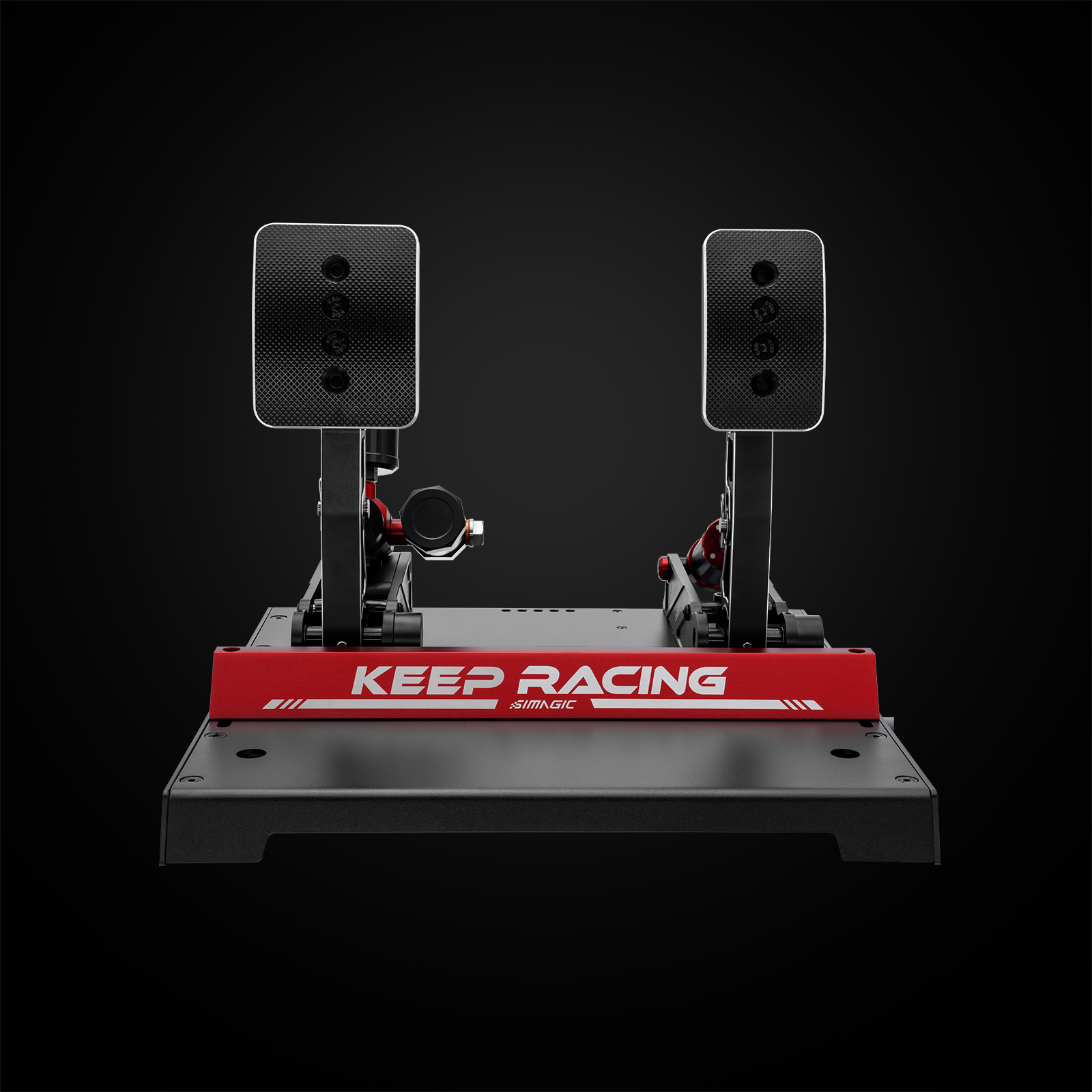

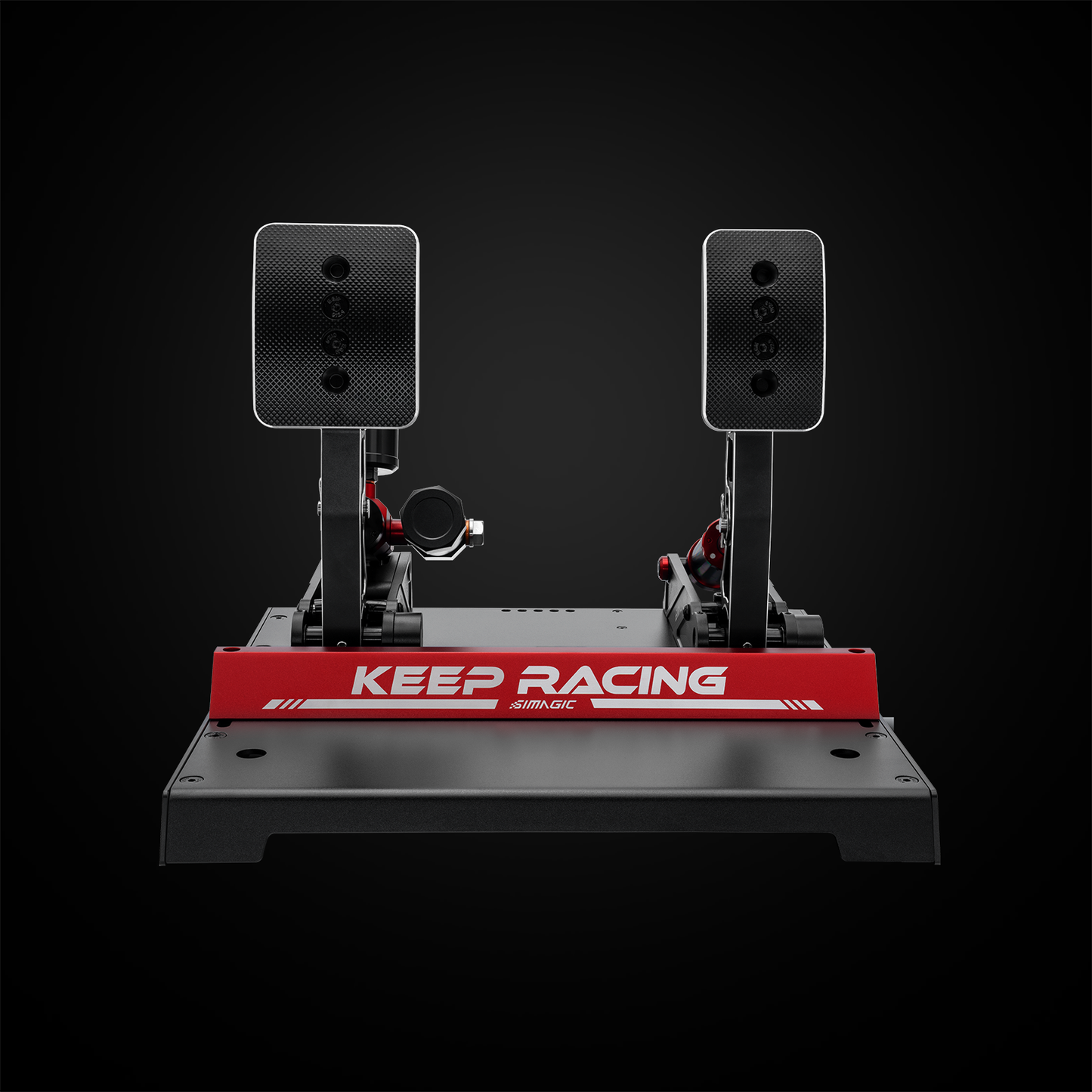

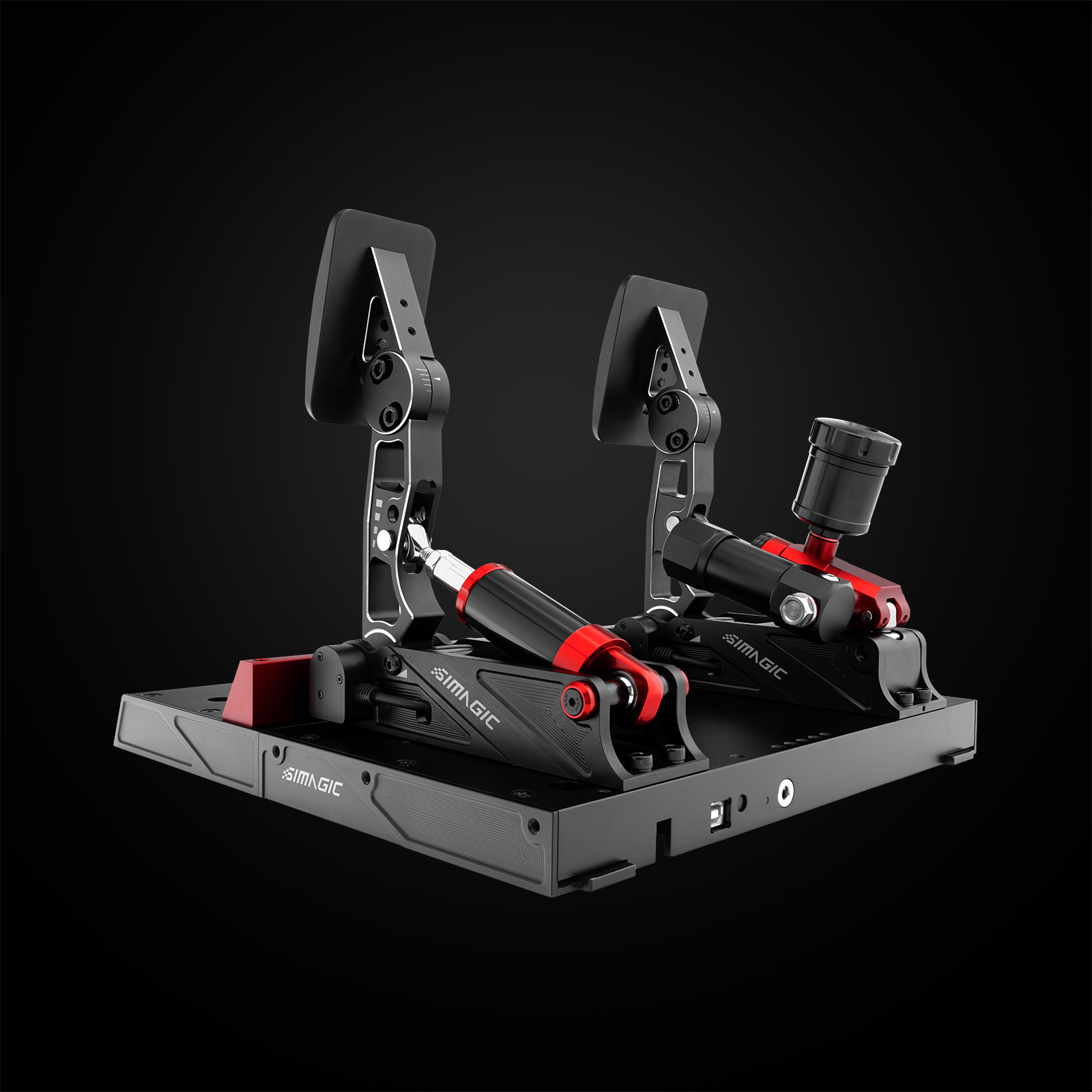

The SIMAGIC P1000-FRS hydraulic 2-pedal set pairs a hydraulic load-cell brake with a hall-effect throttle — a compact, high-performance setup for sim racers who demand realism without the clutter.
For sim racers who demand the ultimate in realism and performance, the SIMAGIC P1000 Hydraulic 2-Pedal Set delivers an unparalleled experience. This set includes a hydraulic brake and a hall-effect throttle, offering exceptional precision and control. Engineered for drivers who prioritize a minimal but high-performance setup, this configuration brings real-world braking feel into your sim racing rig.
Key Features
- Hydraulic Brake System — authentic, progressive brake feel that closely replicates braking in a real race car, with ultra-precise feedback for complete control over your inputs.
- 100 kg Load Cell — the brake measures pressure, not travel, so you build muscle memory the way real drivers do.
- Hall-Effect Throttle Sensor — smooth, consistent, highly accurate throttle input without the mechanical wear of traditional potentiometers.
- Fully Adjustable — tune resistance, pedal angle, position, and travel to match your driving style.
- CNC Aluminum & Stainless-Steel Build — anodized aluminum pedal plates and a rigid frame built to survive the most intense racing.
- Compact & Powerful — ideal for rigs where space matters, with everything you need to control braking and throttle with precision.
Compatibility
- Connects directly to PC via USB, or to a SIMAGIC wheelbase via CAN-Bus
- Configured through SIMAGIC SimPro Manager (firmware updates, linearity, deadzones, brake force)
- Works with major PC sim titles that support USB pedal input
| Model | SIMAGIC P1000-FRS (2-Pedal Hydraulic) |
|---|---|
| Configuration | Brake + Throttle |
| Brake | Hydraulic cylinder with 100 kg load cell sensor |
| Throttle | Hall-effect angle sensor |
| Resolution | 12-bit (4096 steps) |
| Adjustments | Brake force, linearity, deadzones, pedal angle/position |
| Connection | USB (PC) / CAN-Bus (SIMAGIC wheelbase) |
| Software | SIMAGIC SimPro Manager |
| Material | CNC aluminum alloy, stainless steel, anodized pedal plates |
| Dimensions | 334.8 × 336 × 267 mm |
| Weight | Approx. 5.0 kg |
| Mounting | Rig/cockpit mount; reverse (inverted) installation optional |
| Color | Black |
- 1 × Hydraulic brake pedal (load cell, pre-fitted)
- 1 × Hall-effect throttle pedal
- 1 × Pedal control box
- 1 × Profile L-plate
- 1 × Heel stop
- 1 × USB cable
- Throttle spring, rubber pads & barrel rubber pads
- Mounting screws
Manufacturer Warranty
SIMAGIC covers this product for 12 months from the date of purchase against defects in materials and workmanship under normal use. Damage from self-repair, modification, or water exposure is not covered.
