See It. Fly It. Race It.

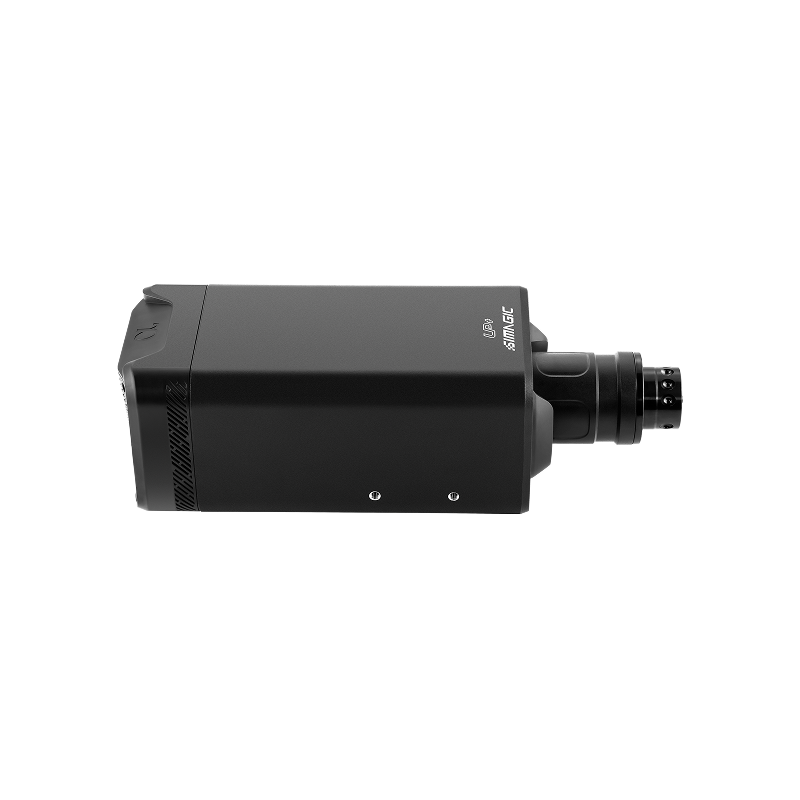

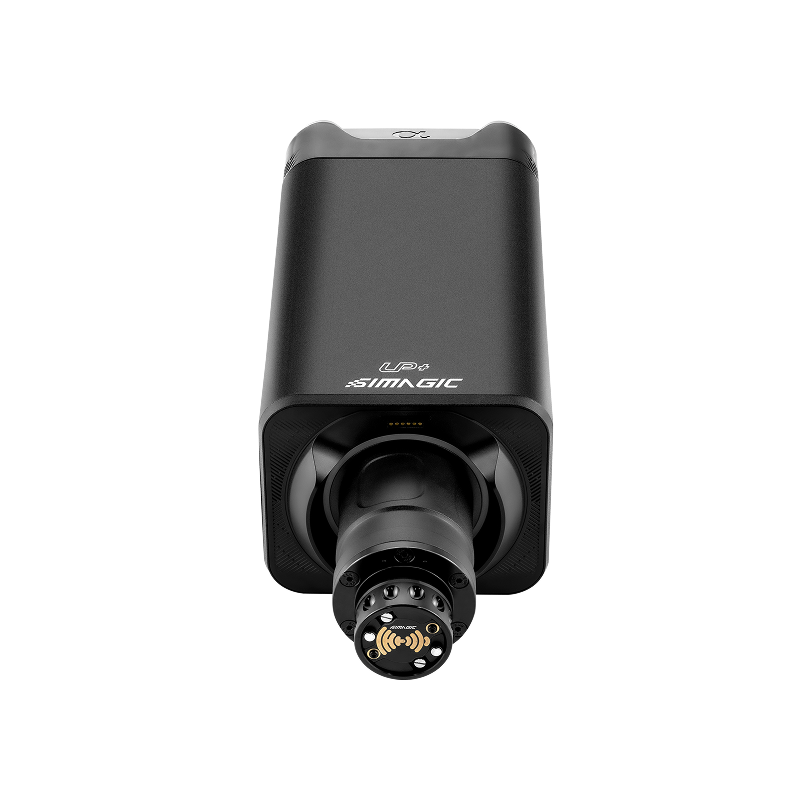

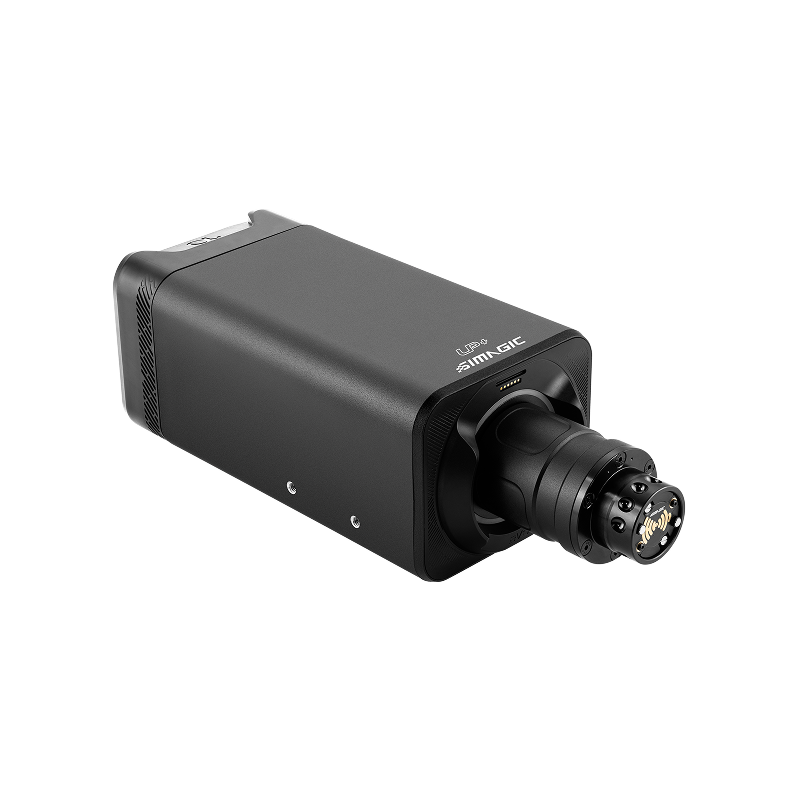

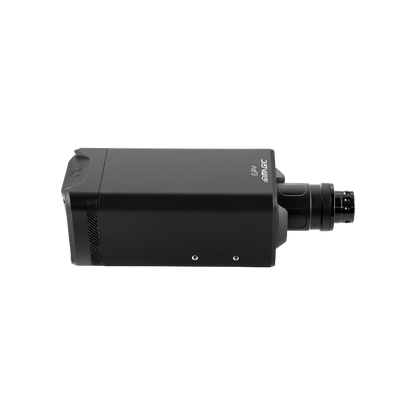

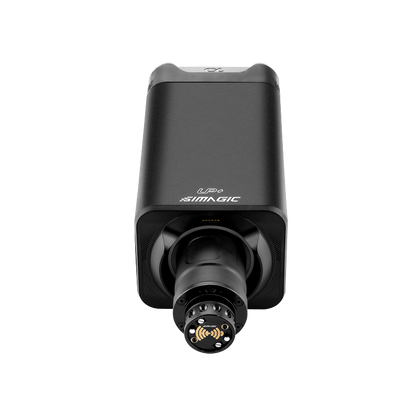

The SIMAGIC Alpha EVO Ultra is the flagship of the Alpha EVO lineup a 28 Nm direct drive wheel base that redefines what a high-performance motor controller can do. It combines wireless programmability with precision-engineered internals, an ultra-low inertia motor, and active cooling built for serious drivers who want maximum detail and consistent force, lap after lap.
See the SIMAGIC Alpha EVO Ultra in action
- 28 Nm of flagship torque the highest-output base in the Alpha EVO series, driven by a 550 W system and 48 V low-voltage power supply.
- Ultra-low inertia motor a lightweight, small-diameter rotor reduces inertia for tighter, more responsive control and sharper road feel.
- Zero-cogging servo a 5-pole-pair industrial servo motor eliminates mechanical stepping for perfectly smooth rotation.
- Microsecond force processing the Dynamic Force Domain Filter (DFDF) processes force feedback at microsecond-level response speeds.
- 21-bit encoder over 2 million steps per rotation for ultra-fine positional accuracy.
- Active cooling built-in cooling prevents torque drop from overheating during long sessions.
- Wired and wireless connectivity supports CAN, CAN FD, USB, and 2.4G wireless for next-gen wheels, legacy wheels, and third-party wheels via the QR-A adapter.
- Flexible mounting bottom-mount, side-mount (MB-S), front-mount (MB-F), and adjustable desk fixture (T-LOC) options.
- iRacing ready supports iRacing's native 360 Hz force feedback and all major PC sim racing titles.
Specifications
| Spec | Detail |
|---|---|
| Motor Type | Ultra-low inertia, zero-cogging 5-pole-pair industrial servo |
| Max Torque | 28 Nm |
| Max Power | 550 W |
| Encoder Resolution | 21-bit (2,000,000+ steps per rotation) |
| Control Frequency | 20 kHz |
| Processor | 180 MHz |
| Force Processing | Dynamic Force Domain Filter (DFDF) |
| Cooling | Active cooling system |
| Power Supply | 48 V low-voltage PSU |
| Connectivity | CAN, CAN FD, USB, 2.4G wireless |
| Ports | 11 total, including USB Type-C, USB-B, and RJ45 |
| Mounting Options | Bottom-mount, side-mount (MB-S), front-mount (MB-F), T-LOC desk fixture |
| Material | Die-cast aluminum |
| Dimensions | 359 × 130 × 110 mm |
| Net Weight | 11 kg |
| Compatibility | PC; iRacing native 360 Hz FFB and all major PC sim racing titles |
What's Included
- 1 × SIMAGIC Alpha EVO Ultra Wheel Base
- 2 × Installation Kit
- 1 × Kill Switch
- 1 × Power Adapter
- 1 × USB Cable (Type-A to Type-B)
- 1 × USB Cable (Type-C)
- 1 × RJ45 to RJ11 Cable
