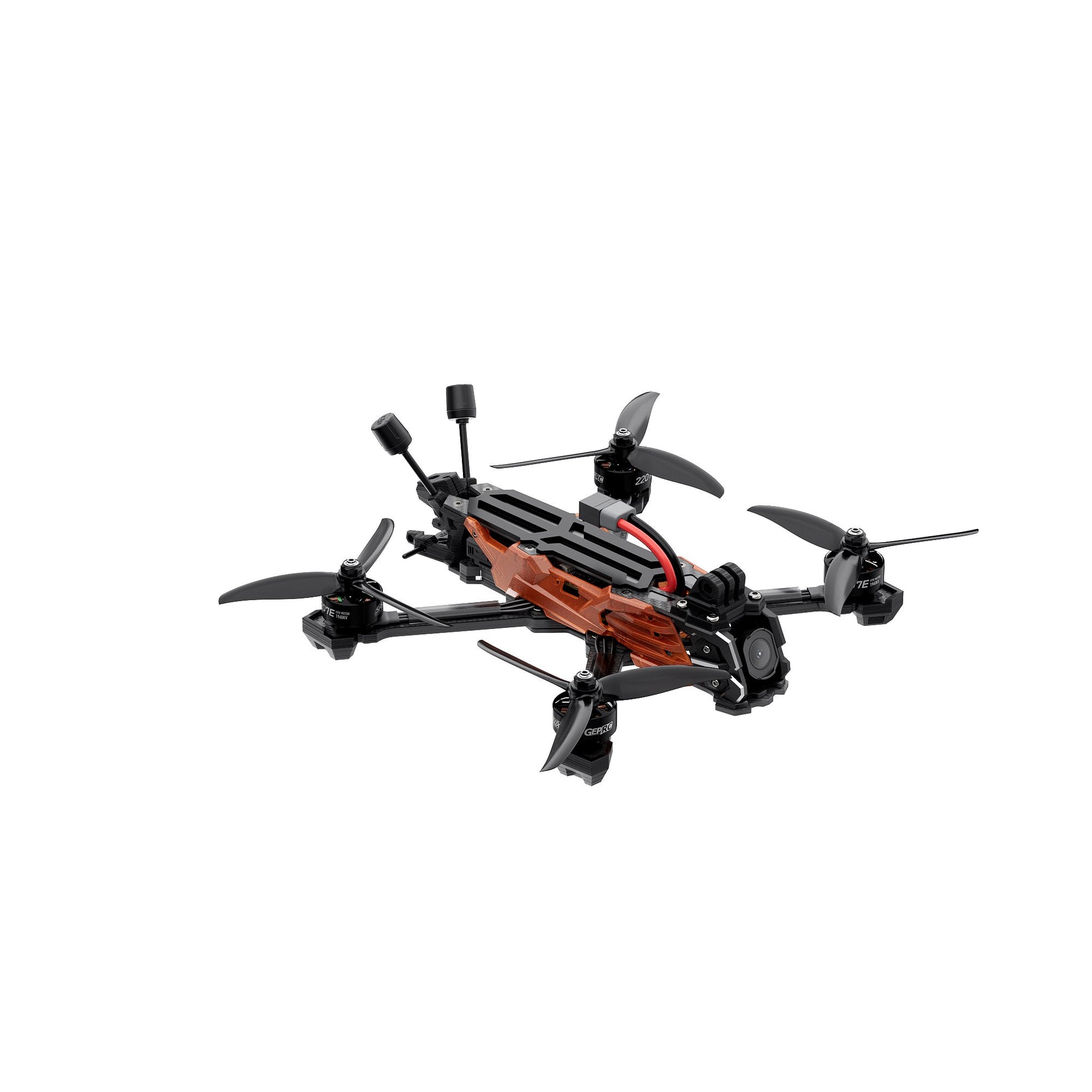

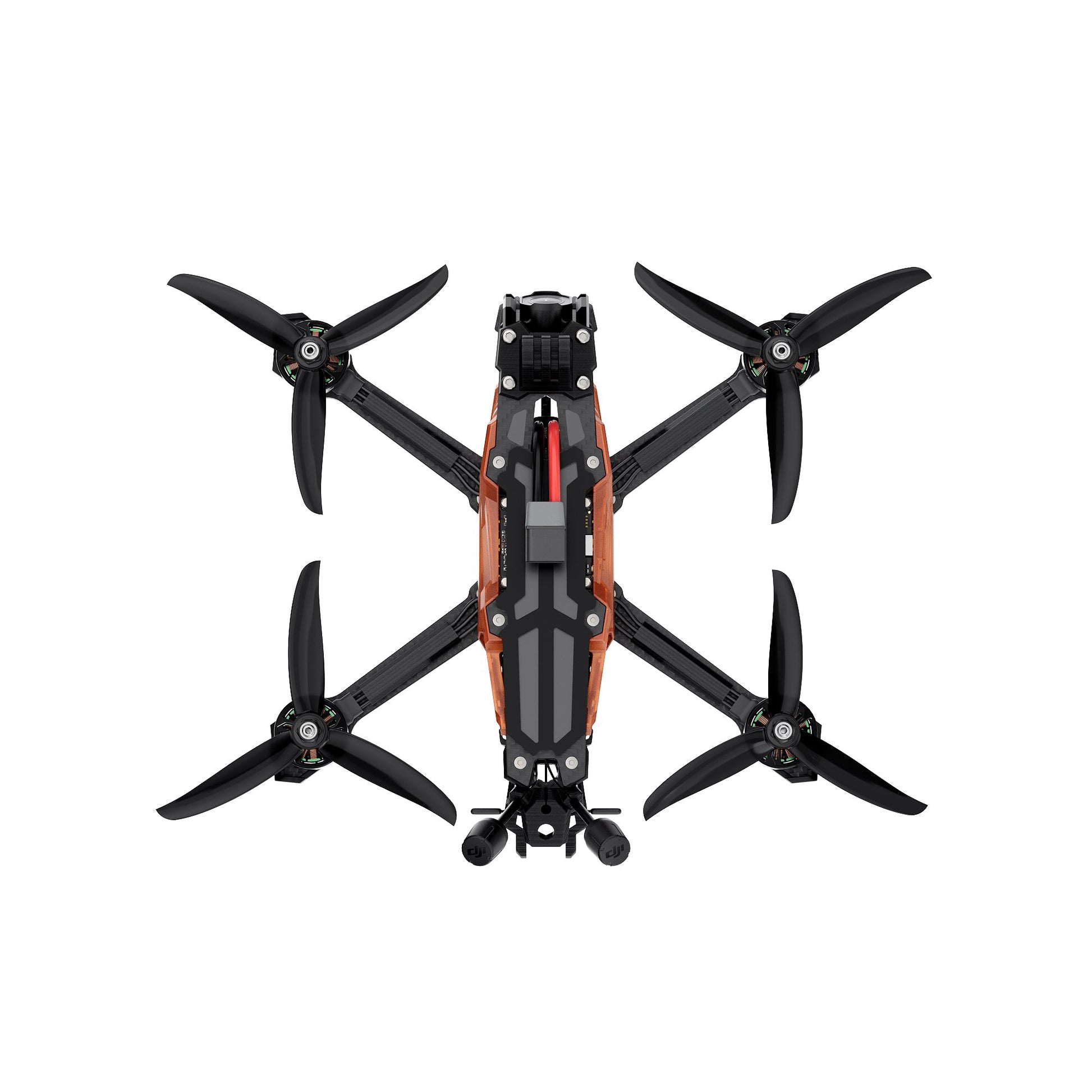

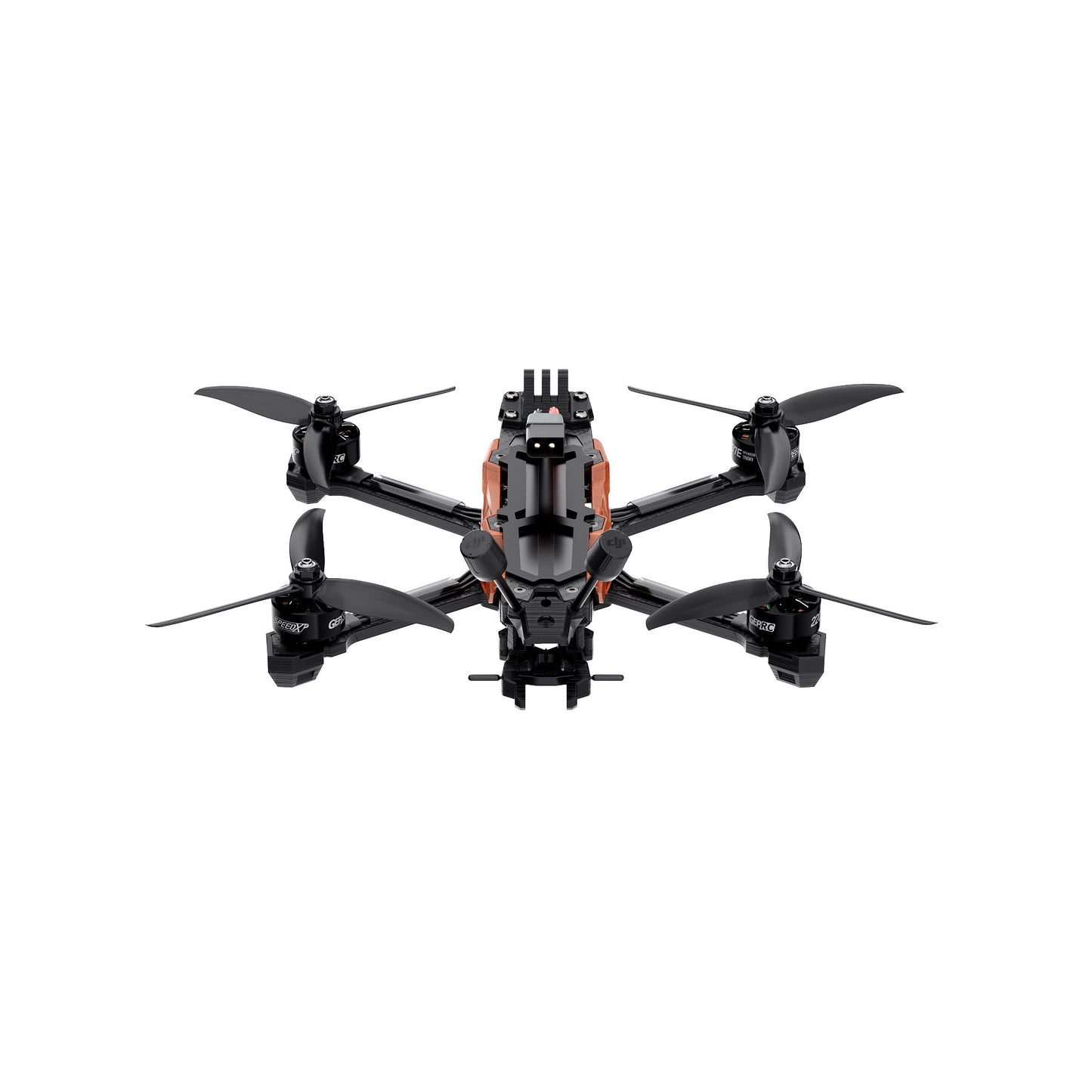

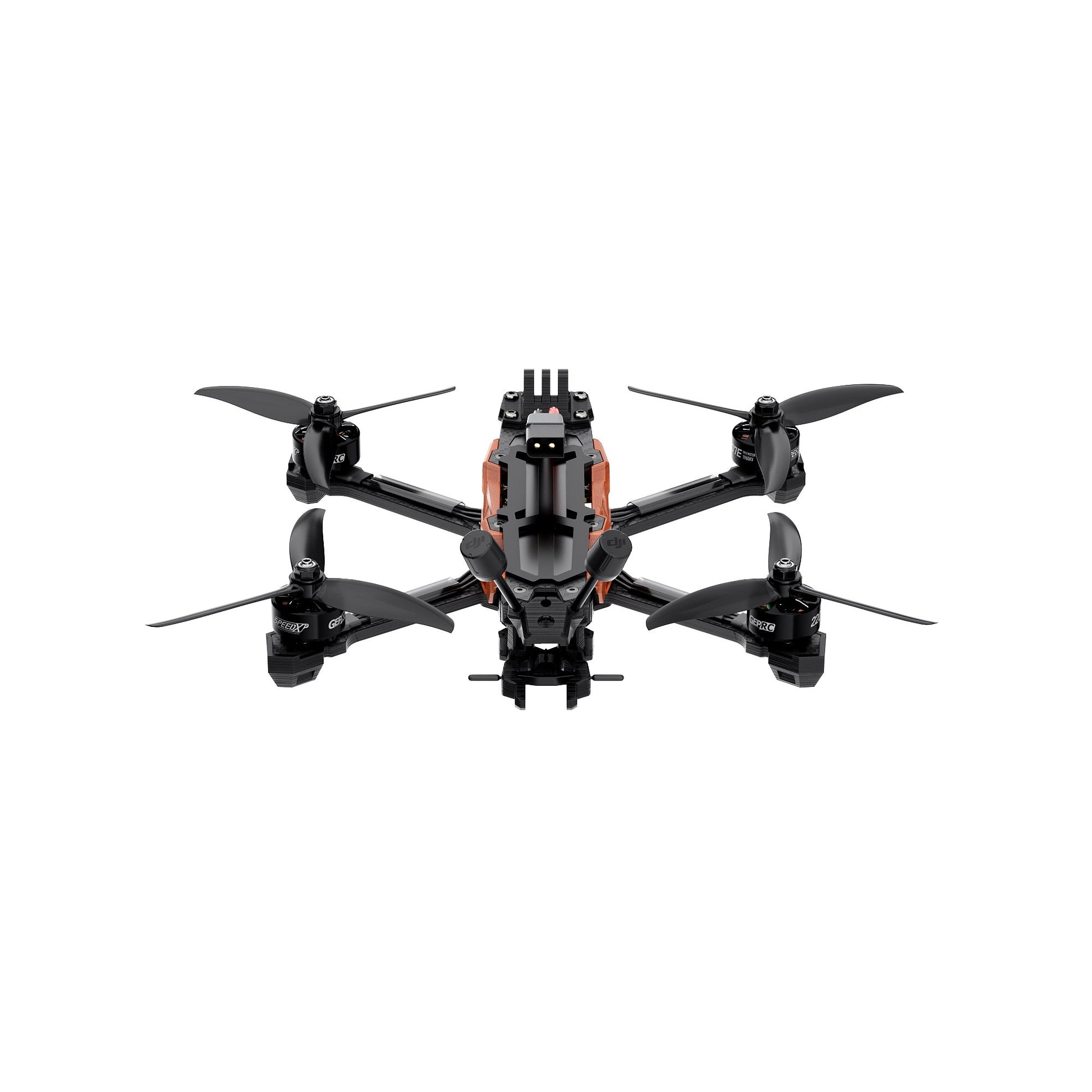

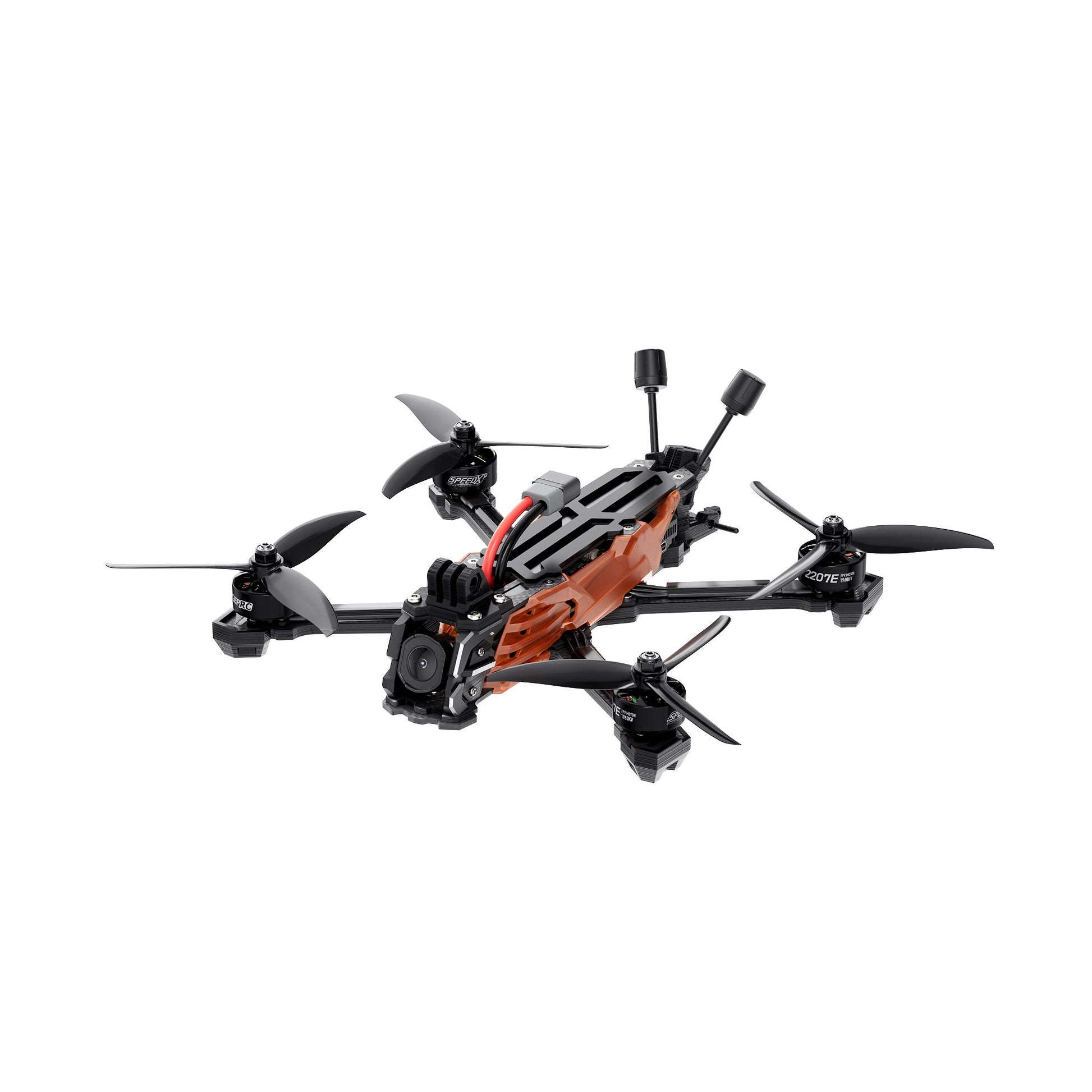

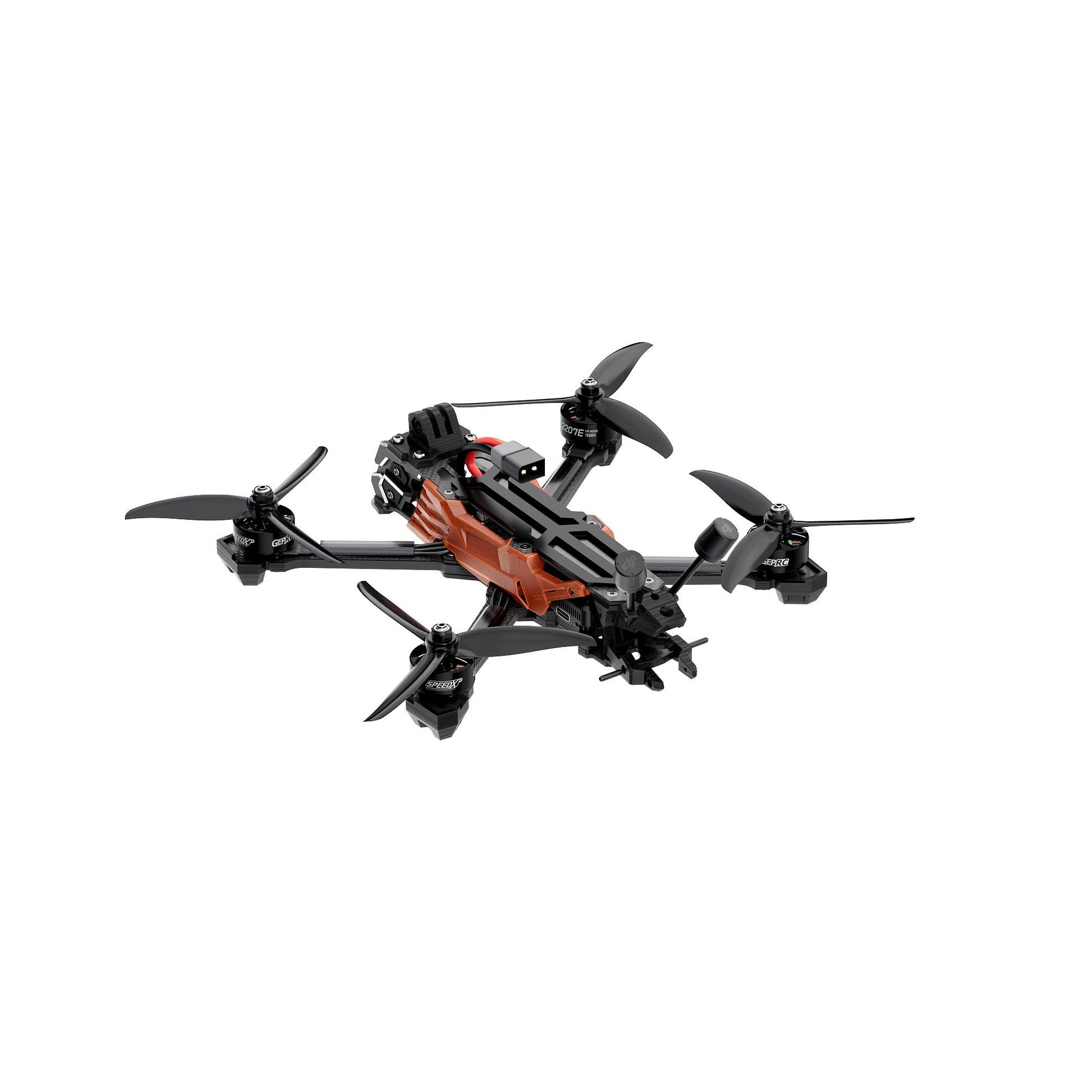

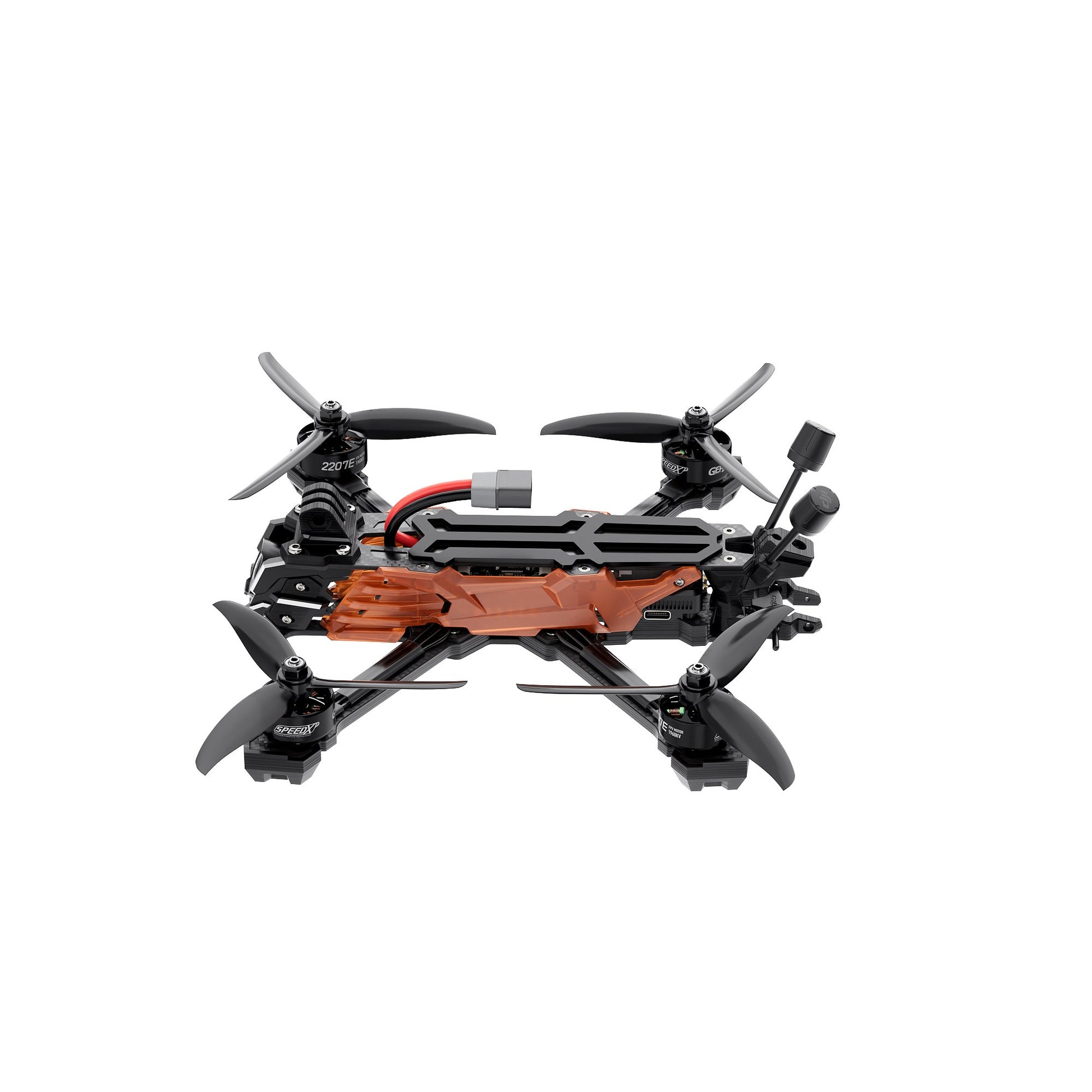

GEPRC Vapor-X5 HD O4 Pro FPV Drone
Summary
The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.
New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a bold, mech-inspired look. The DJI O4 Air Unit Pro’s larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.
Available in two models, Wide X and DC, to suit different flight needs.
Feature
1. DJI O4 Air Unit Pro features a larger CMOS sensor for improved image clarity and enhanced light sensitivity.
2. CNC aluminum lens housing for a durable, bold design.
3. GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
4. Front lip design provides extra lens protection for confident flying.
5. Wider 5mm carbon fiber arms for increased durability and a sleek build.
Specifications
• Model: Vapor-X5 O4 Pro
• Frame: GEP-Vapor-X5 O4 Pro frame
• Wheelbase: 230 mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate: 2.5 mm
• Arm Thickness: 5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyro: ICM42688-P(SPI)
• Barometer: YES
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: DJI O4 Air Unit Pro
• Camera: O4 Pro Camera
• Antenna: O4 Pro original antenna
• Connector: XT60
• Optional GPS: GEP-M10 GPS
• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
• 5-inch Propeller: GEMFAN 5136
• Vapor-X5 O4 PNP Version Weight: 409g±5g
• Receiver: PNP/GEPRC ELRS24/TBS Nano RX
• Recommended Battery: 6S LiPo1300mAh – 1800mAh
• Flight Time: 14-19min
Includes
1 x Vapor-X5 O4 Pro
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
1 x Vapor side panel
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount
The spare screws include
6 x M3*10mm round head screws
6 x M3*8mm round head screws
2 x M3*6mm flat head screws
1 x M5*28mm thin head screw
1 x M5 flange nut
4 x M3 rivet nuts
