Summary
The GEPRC Vapor series has been completely redesigned for optimal compatibility with the DJI O4 Air Unit Pro VTX — pairing next-generation HD video with a tougher, race-ready airframe.
New CNC aluminum lens components and shock-absorbing silicone dampen vibrations for a cleaner image, while sharp new side panels give the frame a bold, mech-inspired edge. The O4 Air Unit Pro’s larger CMOS sensor captures more detail and performs better in low light, and GEPRC-tuned PID settings deliver a smooth, immersive flight feel straight out of the box.
Available in two models — Wide X and DC — so you can dial in the setup that fits your flying style.
Features
1. A powerful CMOS sensor in the DJI O4 Air Unit Pro delivers sharper image clarity and enhanced low-light sensitivity.
2. CNC aluminum lens housing for a durable build and a bold, standout look.
3. GEPRC SPEEDX2 E-series motors for smooth, powerful, responsive performance.
4. Front lip design adds extra lens protection so you can push your flying with confidence.
5. Wider 5mm carbon fiber arms boost durability while keeping the build sleek.
Specifications

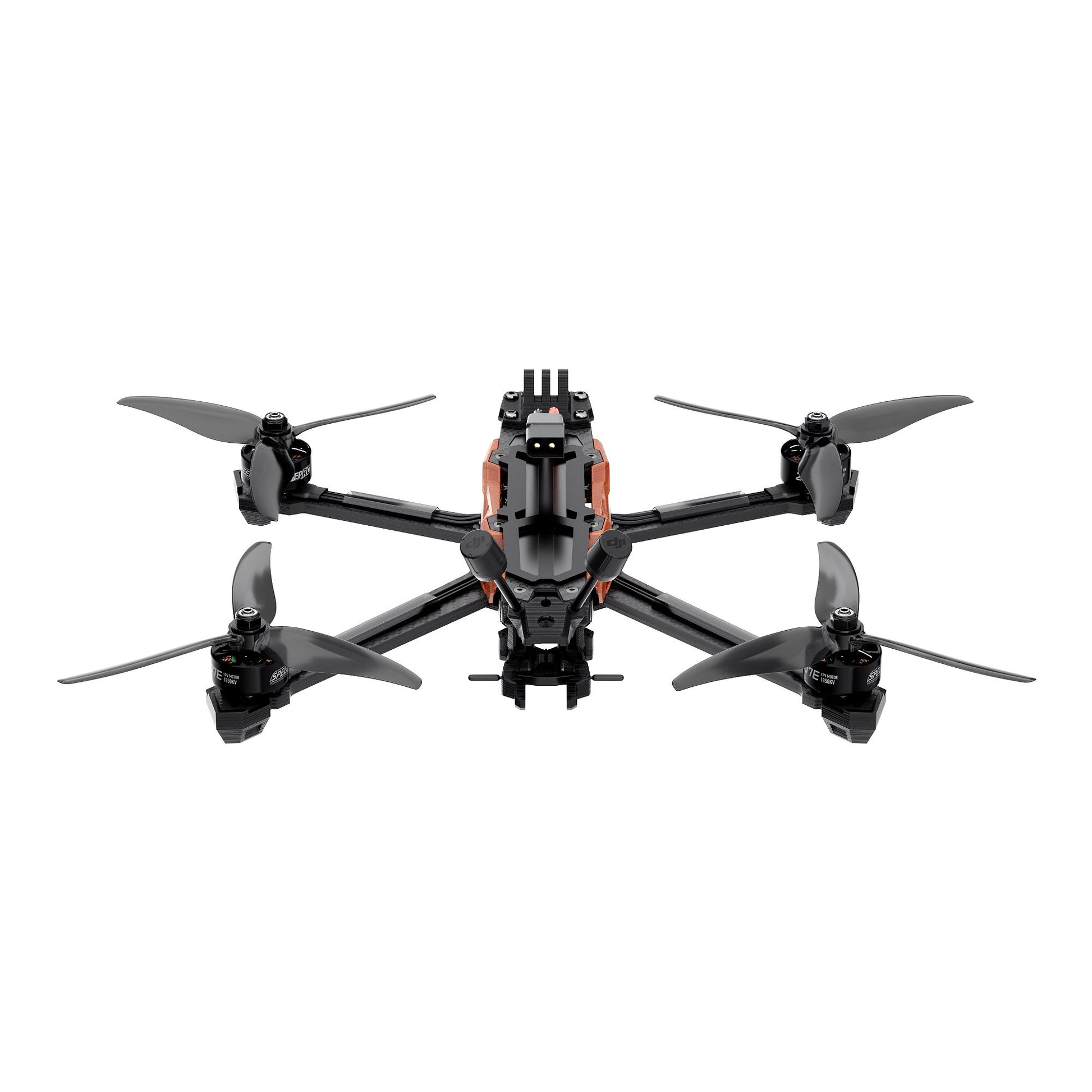

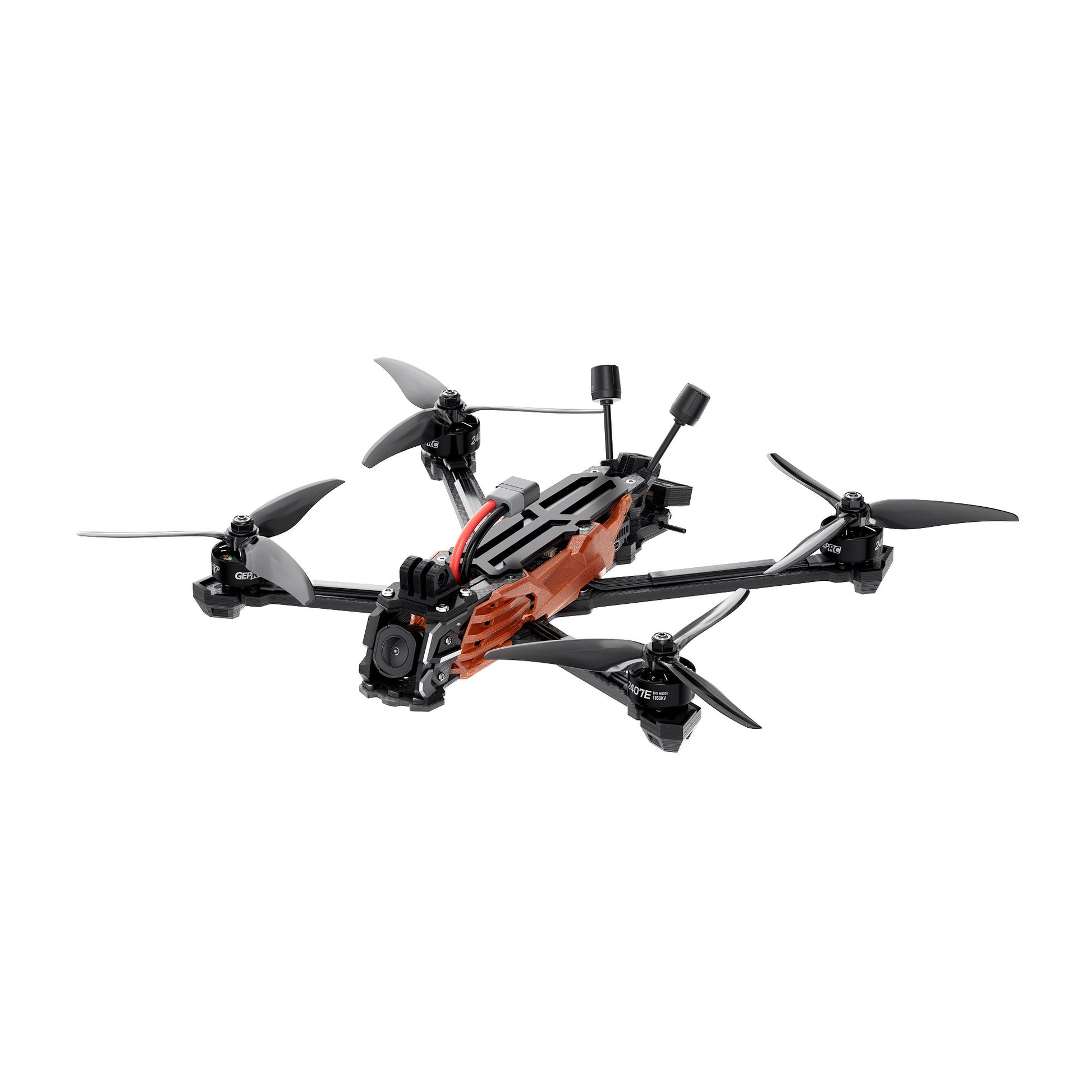

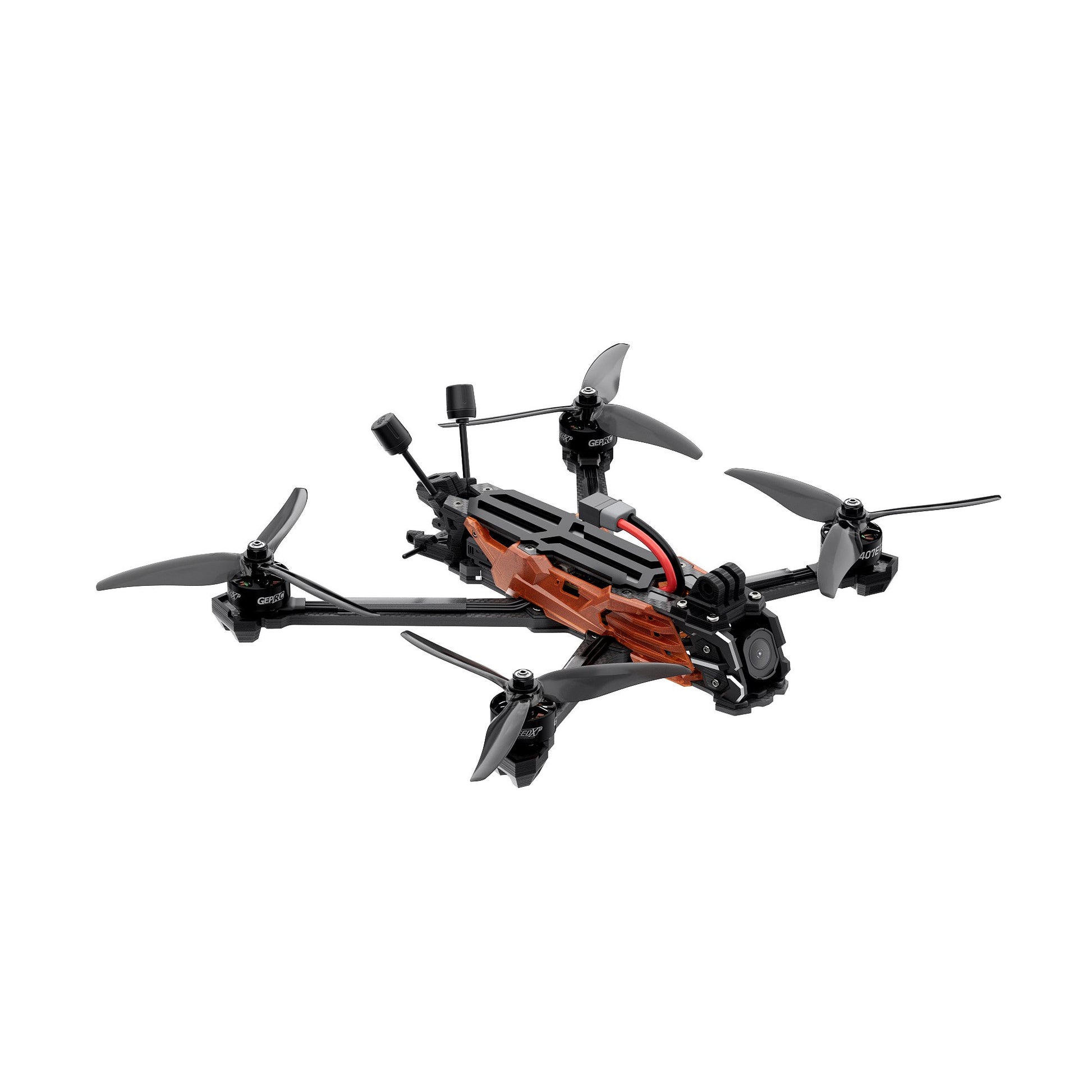

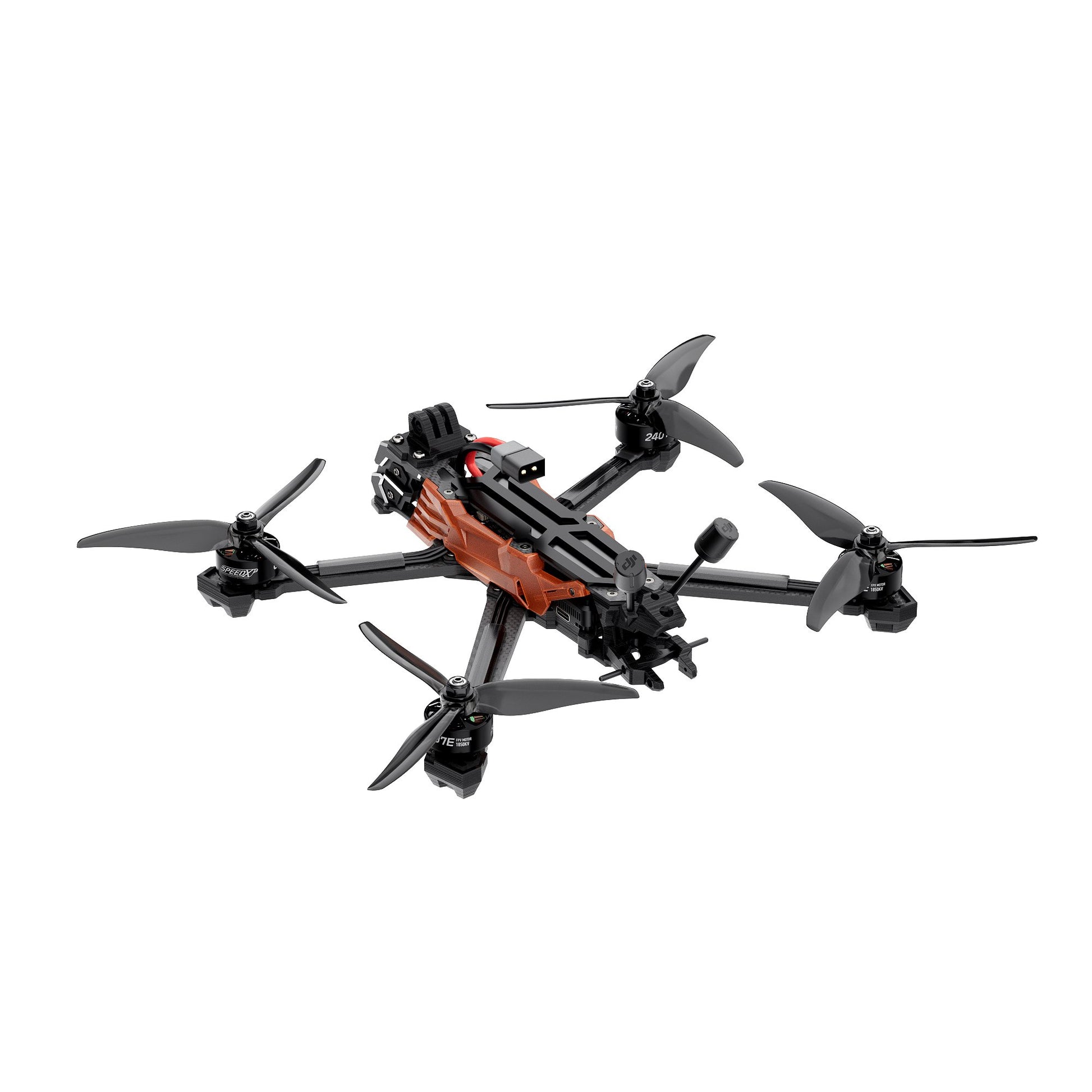

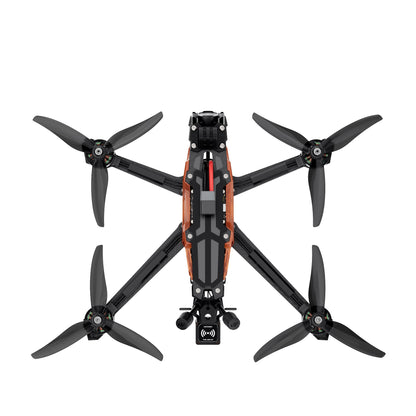

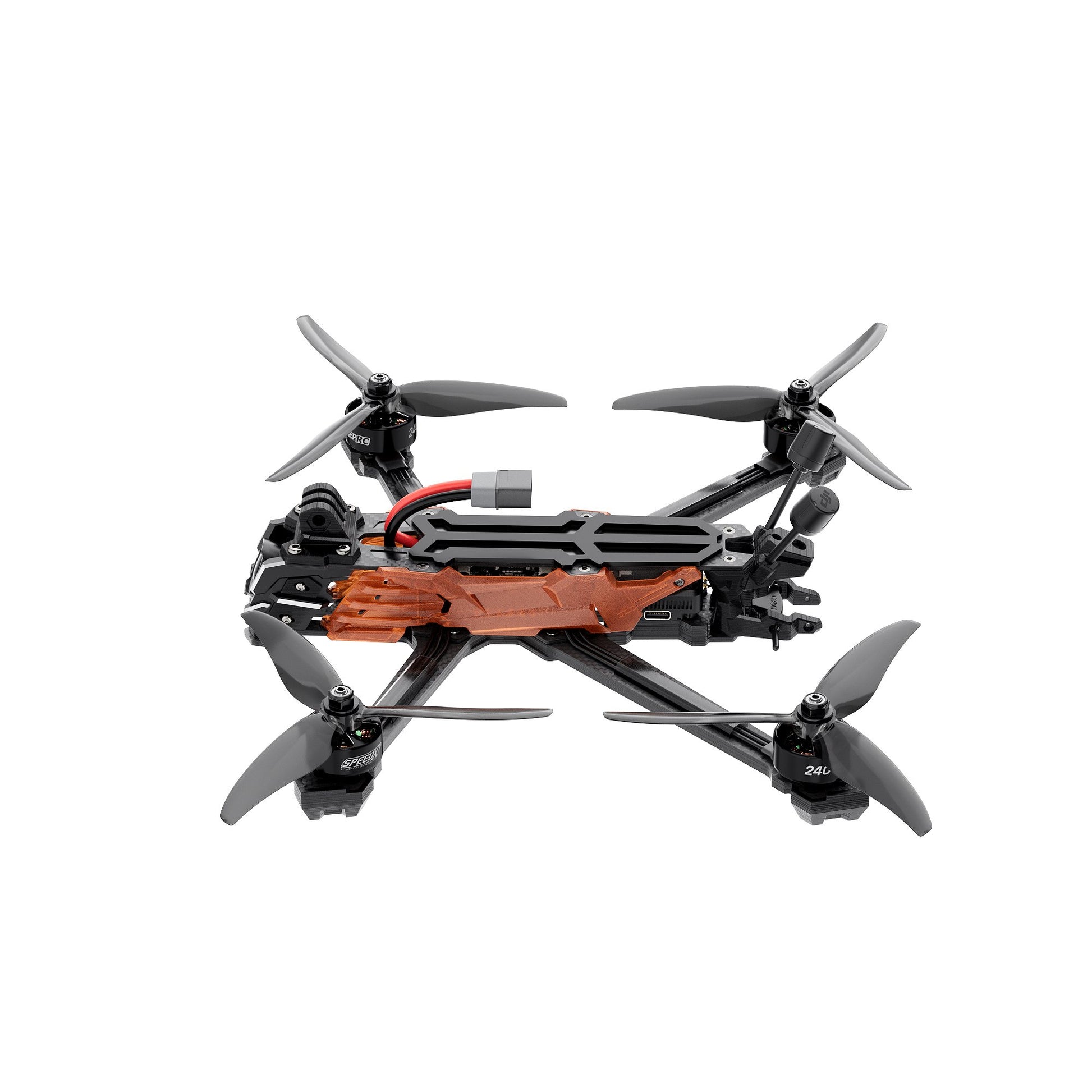

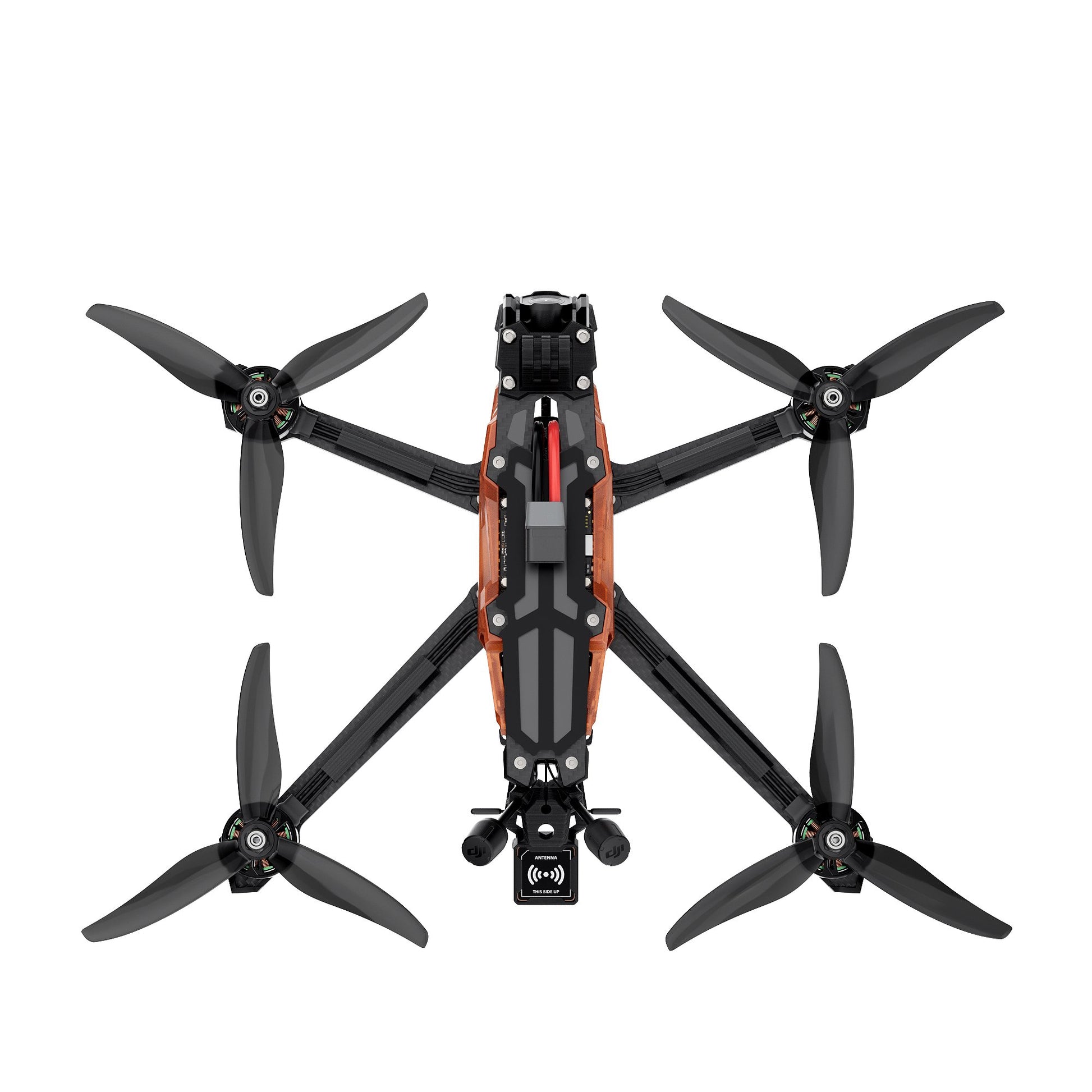

• Model: Vapor-D5 O4 Pro
• Frame: GEP-Vapor-D5 O4 Pro frame
• Wheelbase: 230 mm
• Top Plate: 2.0 mm
• Middle Plate: 2.0 mm
• Bottom Plate: 2.5 mm
• Arm Thickness: 5.0 mm
• FC: GEP-F722-HD v2
• MCU: STM32F722
• Gyro: ICM42688-P(SPI)
• Barometer: YES
• OSD: Betaflight OSD w/AT7456E
• ESC: TAKER H60_BLS 60A 4IN1 ESC
• VTX: DJI O4 Air Unit Pro
• Camera: O4 Pro Camera
• Antenna: O4 Pro original antenna
• Connector: XT60
• Optional GPS: GEP-M10 GPS
• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
• 5-inch Propeller: GEMFAN 5136
• Vapor-D5 O4 Pro PNP Version Weight: 428 g±5g
• Receiver: PNP/GEPRC ELRS24/TBS Nano RX
• Recommended Battery: 6S LiPo1300mAh – 1800mAh
• Flight Time: 14-19 min
What’s in the Box
Every Vapor-D5 O4 Pro PNP kit ships with everything below:
1 x Vapor-D5 O4 Pro
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
1 x Vapor side panel
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x GoPro mount
The spare screws include
6 x M3*10mm round head screws
6 x M3*8mm round head screws
2 x M3*6mm flat head screws
1 x M5*28mm thin head screw
1 x M5 flange nut
4 x M3 rivet nuts
