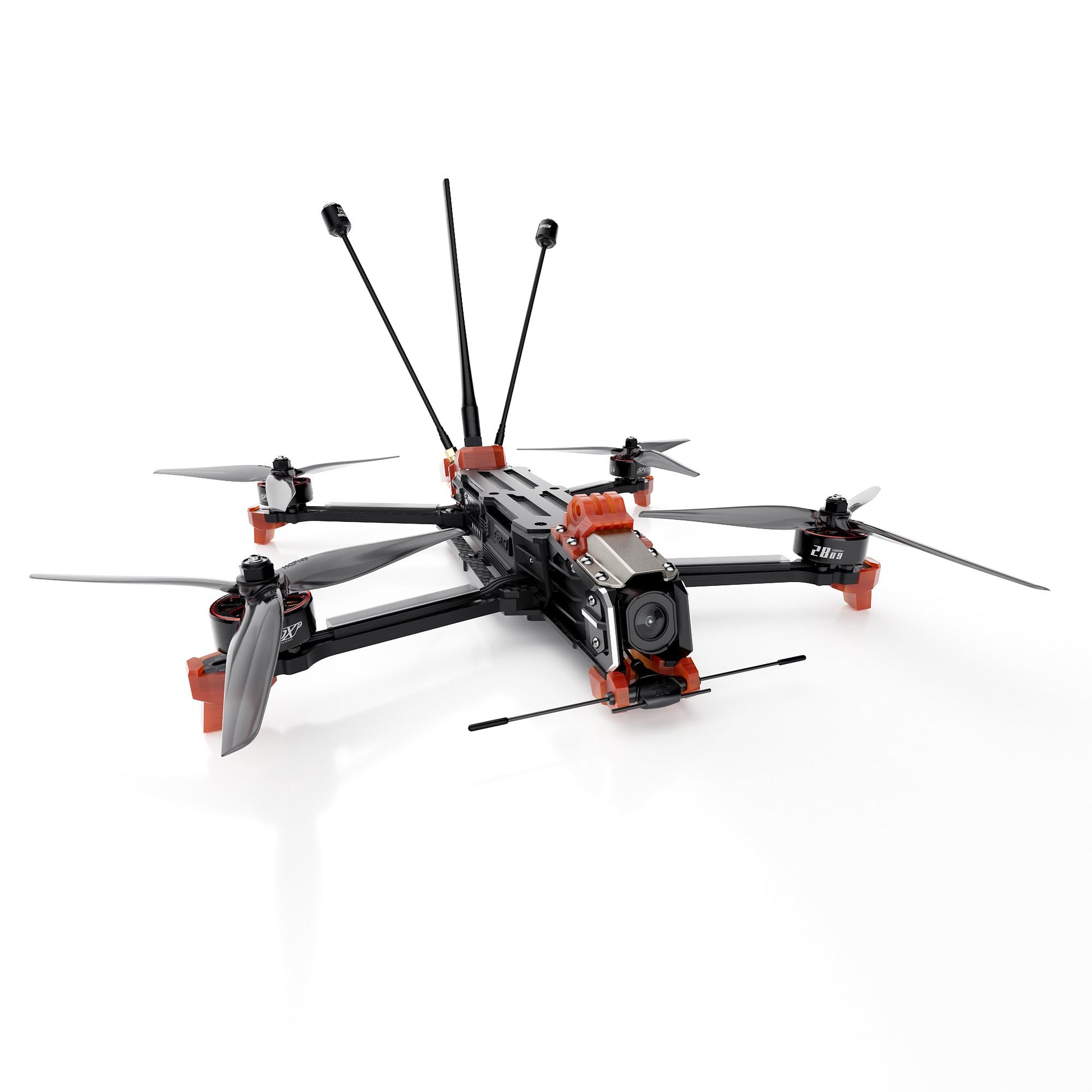

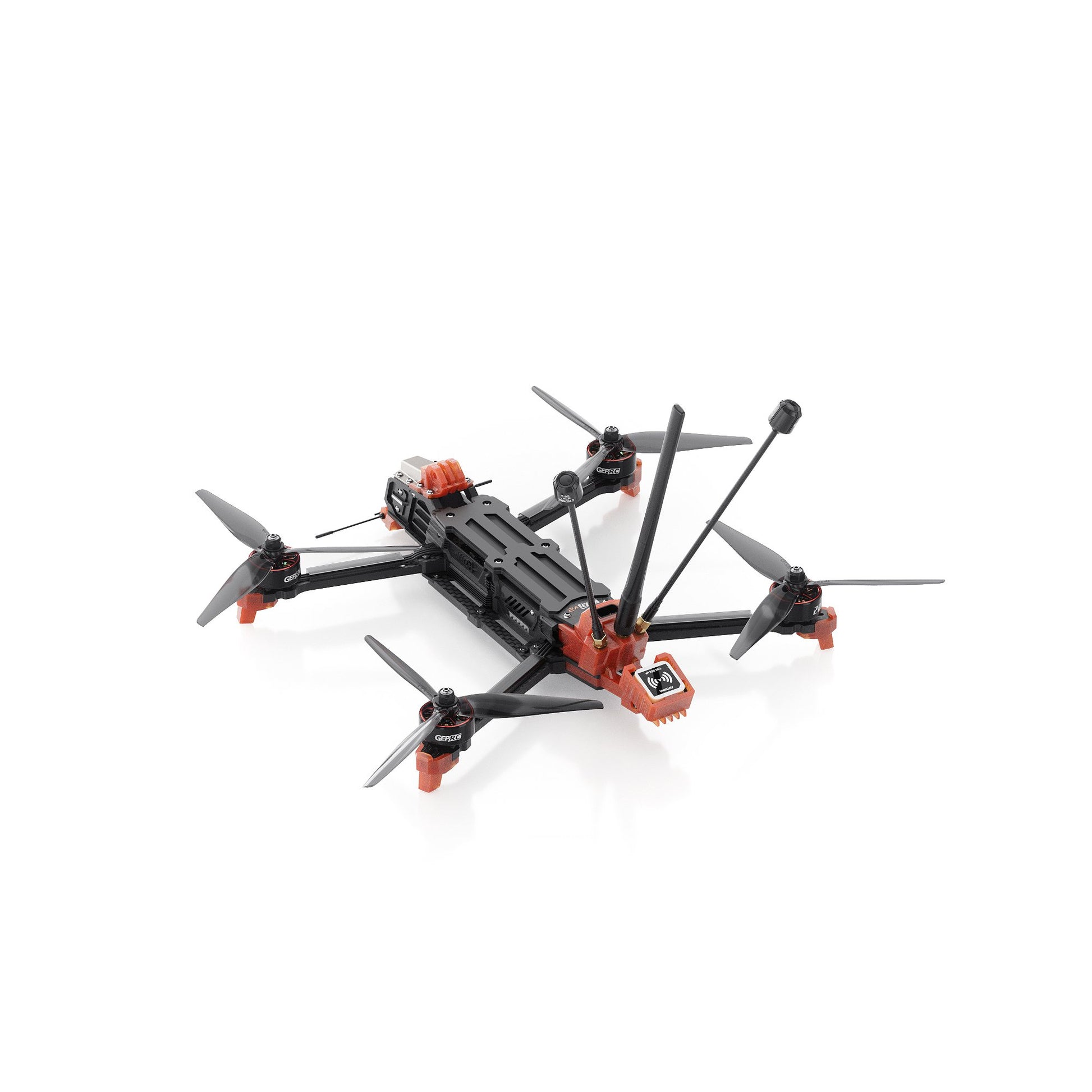

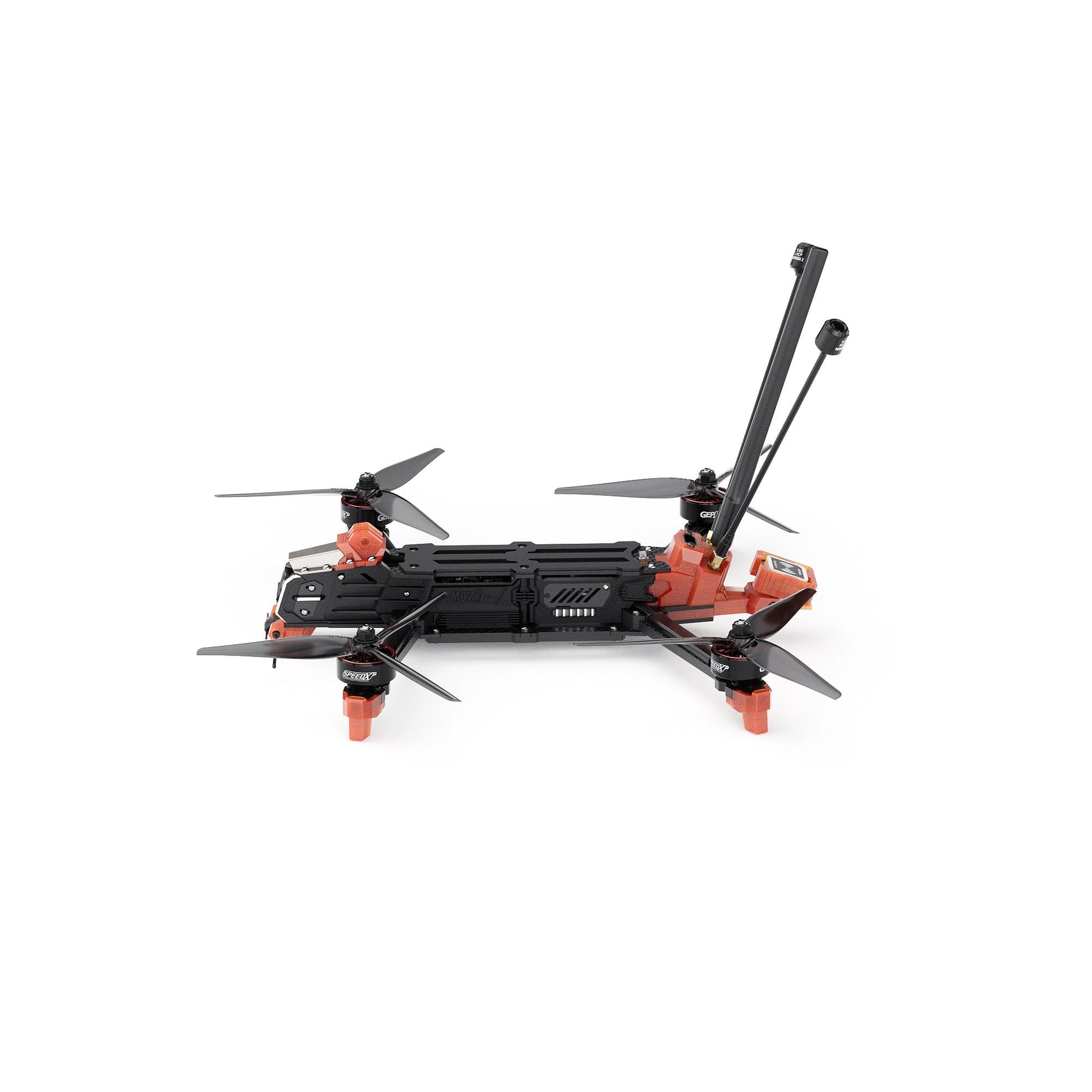

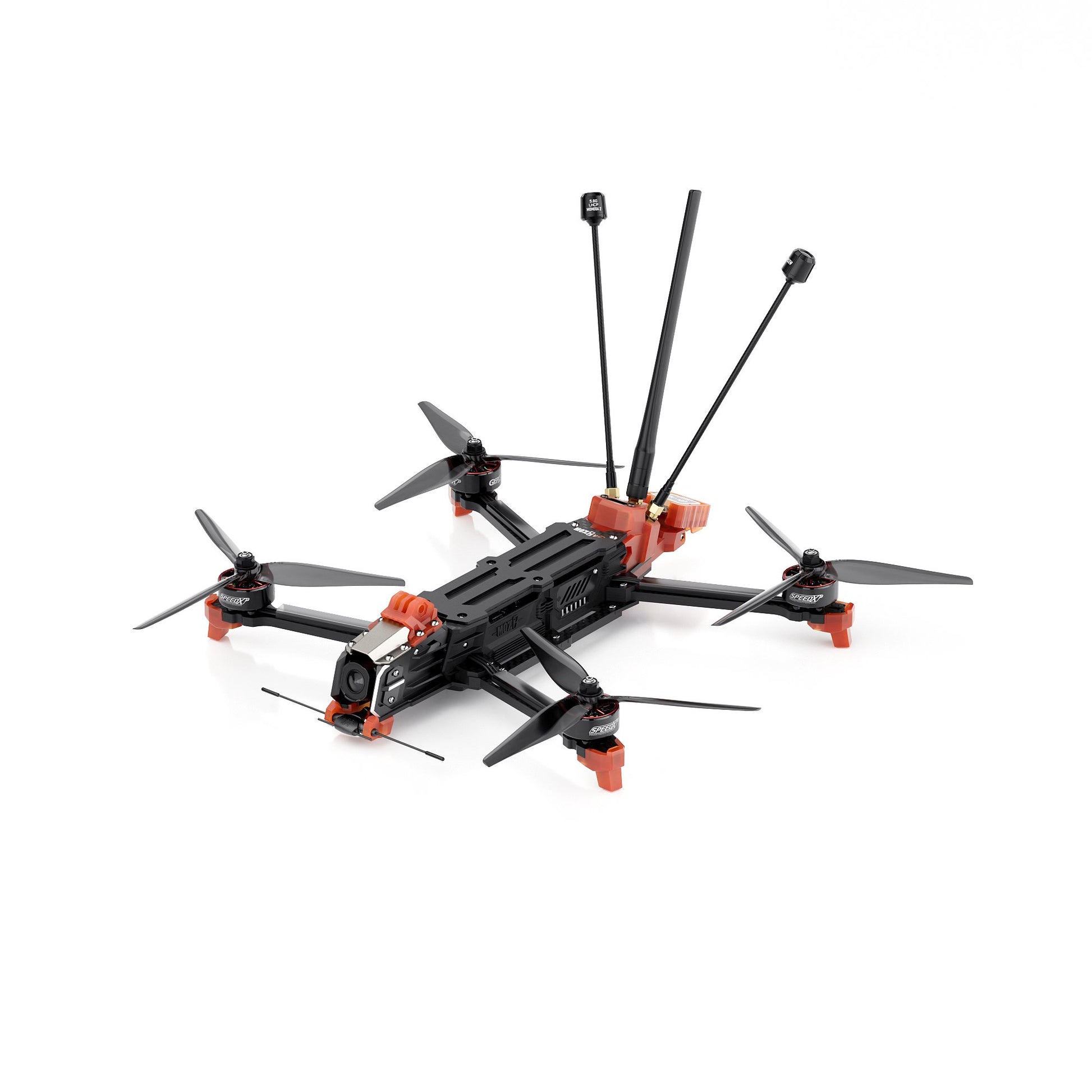

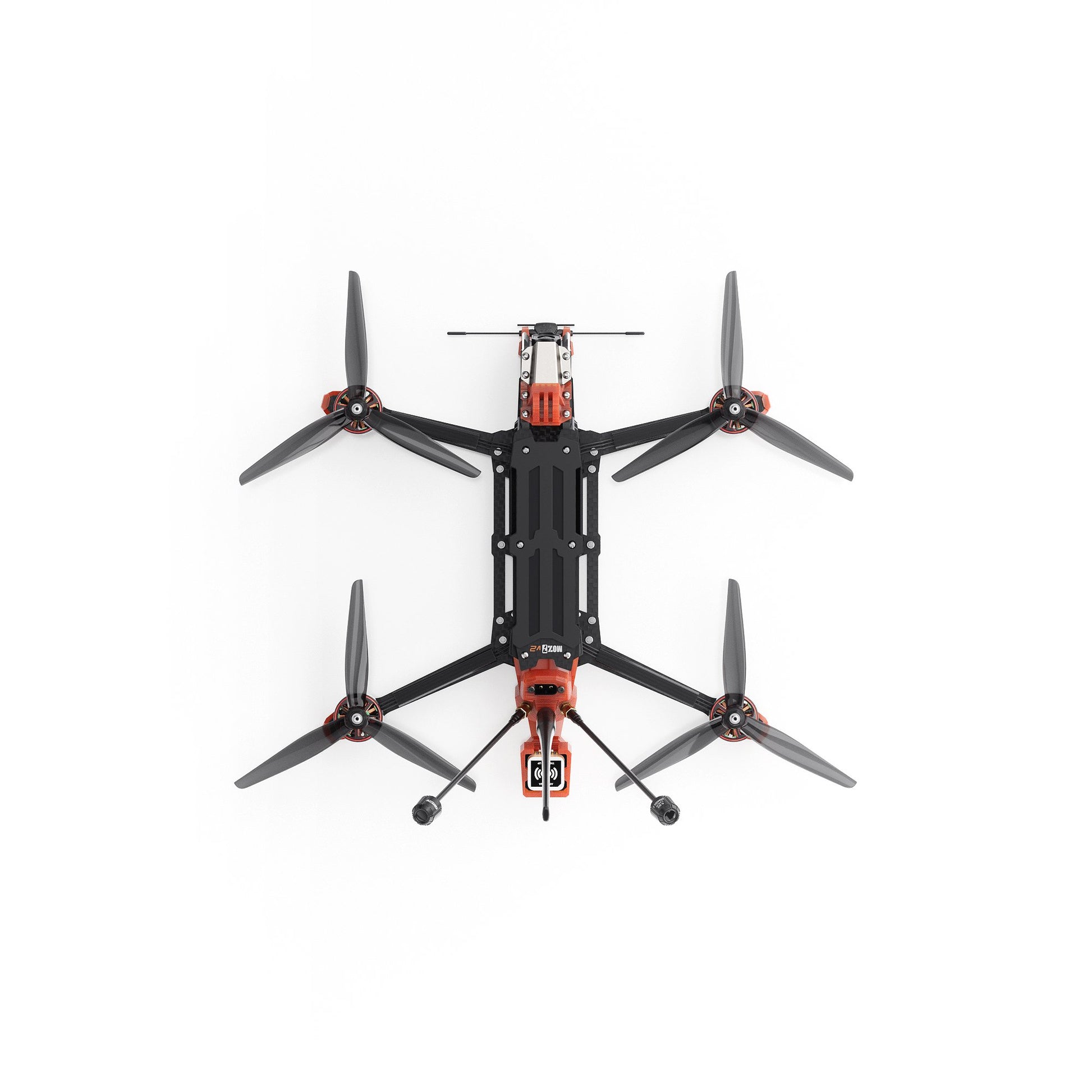

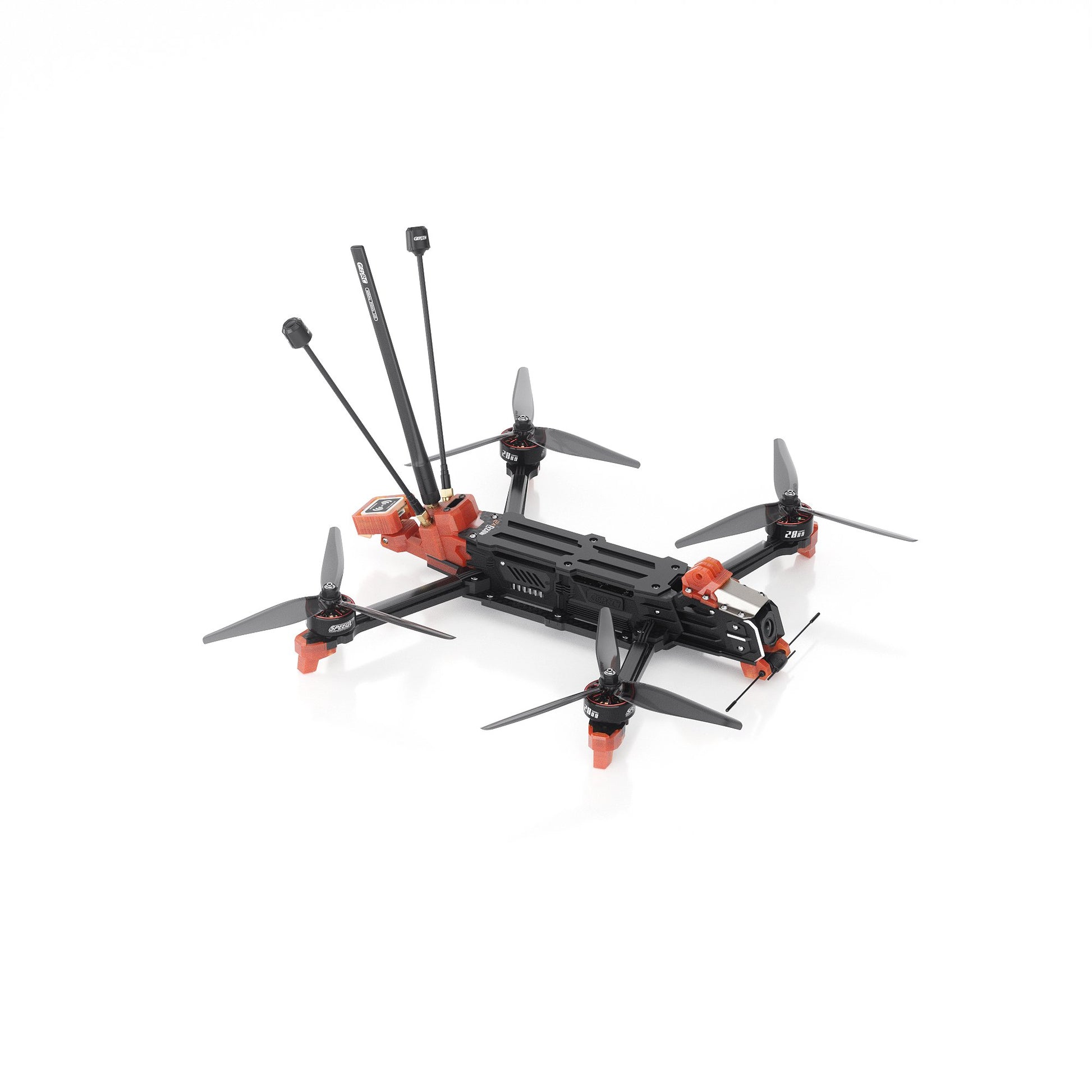

GEPRC MOZ7 V2 O4 Pro — Long Range FPV Drone
The MOZ7 V2 raises the bar for immersive FPV visuals. Built around the DJI O4 Air Unit Pro, it pairs a 1/1.3-inch image sensor with a 155° ultra-wide field of view for stunning dynamic range and low-light clarity — even at high speed and low altitude. Shoot in 4K/120fps or transmit in 1080p/100fps H.265, with 10-bit D-Log M color for footage that's ready to grade straight out of the box. With transmission reaching up to 15 km, the MOZ7 V2 is built to explore.
Beyond the camera system, this V2 refresh brings a reinforced frame, a more centered center of gravity, and a 7075 aerospace aluminum camera protector for crisp, prop-free footage every flight. Powered by the TAKER H743 BT flight controller, GEP-M1025 GPS, and an ELRS 915M/2.4G GemX dual-band receiver, the MOZ7 V2 is engineered for serious long-range performance — with two mounting configurations for your action camera and battery so you can build it your way.
Key Features
• Reinforced frame for improved in-flight stability
• DJI O4 Air Unit Pro — 4K/120fps recording, 1080p/100fps H.265 transmission
• Upgraded V1.1 2809 1280KV motors for up to 25 minutes of flight time
• ELRS 915M/2.4G GemX dual-band receiver minimizes signal dead zones (front-horizontal + rear-vertical antenna setup)
• GEP-M1025 GPS for fast, stable satellite lock
• Reinforced side bars for a balanced center of gravity

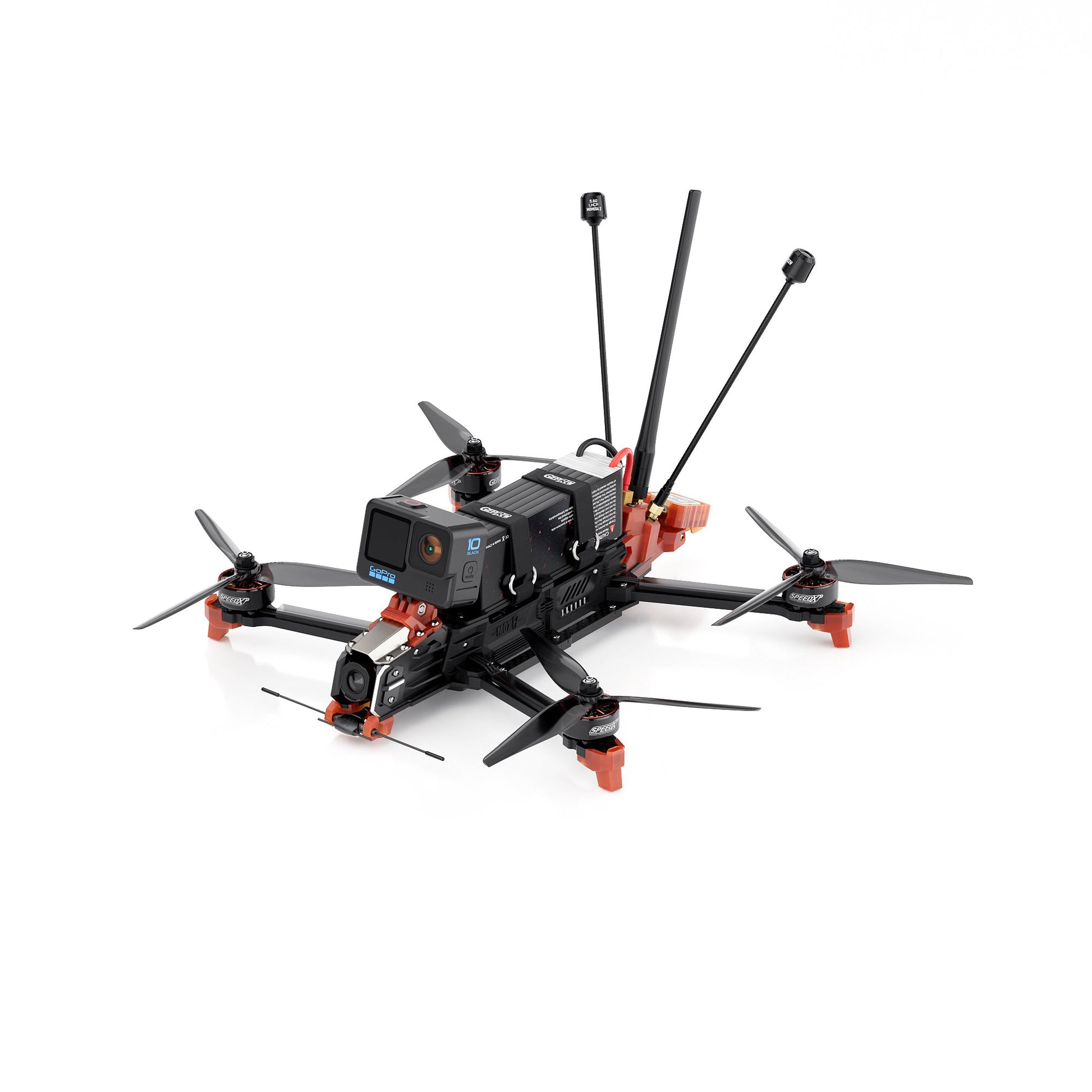

• Swappable action camera mount for flexible positioning
• Two battery mounting options for setup versatility
• TAKER H743 BT flight controller with MPU6000 & ICM42688-P dual gyro for fast, stable data processing
• TAKER H65_8S_32Bit 65A 4-in-1 32-bit ESC for smooth, responsive control
Specifications
• Model: GEPRC MOZ7 V2 O4 Pro
• Frame: GEP-MOZ7 V2
• Wheelbase: 336mm
• Top Plate Thickness: 2.5mm
• Base Plate Thickness: 2.5mm
• Middle Plate Thickness: 3mm
• Arms Thickness: 6mm
• Flight Controller: TAKER H743 BT (STM32H743 MCU)
• Gyroscope: MPU6000 & 42688-P dual
• Barometer: Yes
• GPS: GEP-M1025
• OSD: BetaFlight OSD w/ AT7456E chip
• ESC: TAKER H65_8S_32Bit 65A 4-in-1
• VTX: DJI O4 Air Unit Pro module
• Camera: DJI O4 Air Unit Pro camera module
• Antenna: Momoda2-5.8G-SMA-LHCP-170mm
• Power Connector: XT60E-M
• Motor: SPEEDX2 2809 1280KV V1.1
• Propellers: HQ 7.5x3.7x3 3-blade, transparent grey
• Weight (HD Version): 750g ± 10g
• Receiver: PNP / ELRS 915M/2.4G GemX / TBS NanoRX
• Recommended Battery: LiPo 6S 3300mAh / Li-ion 8000mAh
• Flight Time: Up to 25 minutes (tested at slow cruise; actual time varies by firmware, flying style, and conditions)
What's Included
• 1 x GEPRC MOZ7 V2 FPV Drone
• 2 x HQ 7.5x3.7x3 Propeller Sets (2CW + 2CCW)
• 2 x 15x250mm Battery Straps
• 1 x L-shaped Screwdriver (1.5mm)
• 1 x L-shaped Screwdriver (2.0mm)
• 1 x L-shaped Screwdriver (3.0mm)
• 1 x Spare Screw Pack
• 2 x Battery Anti-Slip Pads
• 1 x Frequency Pairing Ejector Pin
• 2 x VTX Antennas
• 1 x Tri-Band Stick Antenna
Note: As of July 19, 2025, the MOZ7 V2 ships with the GEPRC SPEEDX2 2809 V1.1 1280KV motor (previously 1450KV) and the GEPRC TAKER H65_8S_32Bit 65A 4-in-1 ESC (previously the GEP-BL32 50A 96K 4-in-1 ESC).
