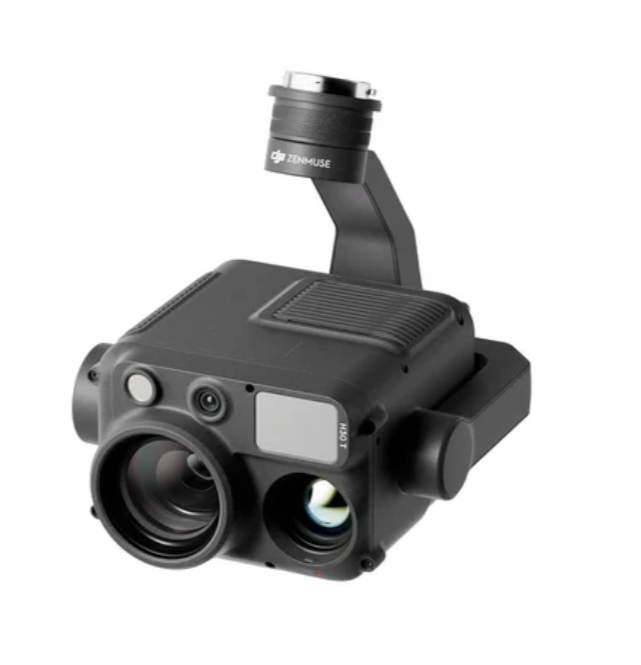

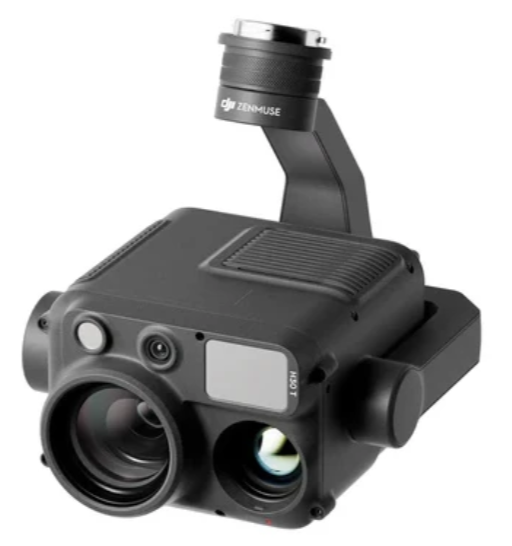

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules: a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.
Choose Your Model
| Module | Zenmuse H30 | Zenmuse H30T |
|---|---|---|
| 48MP Wide-Angle Camera | ✔ | ✔ |
| 40MP Zoom Camera (34× optical / 400× digital) | ✔ | ✔ |
| 3,000 m Laser Rangefinder | ✔ | ✔ |
| NIR Auxiliary Light | ✔ | ✔ |
| 1280×1024 Radiometric Thermal Camera | — | ✔ |
| Power Consumption | 26 W | 28 W |
Key Features
- Wide-Angle Camera — 1/1.3-inch CMOS, 48MP, optimized for low-light and broad scene capture
- Zoom Camera — 1/1.8-inch CMOS, 40MP, 34× optical zoom, 400× digital zoom
- Infrared Thermal CameraH30T ONLY — 1280×1024 resolution, temperature range -20°C to 1600°C, 32× digital zoom
- Laser Rangefinder — 3 m to 3000 m measurement range with GPS coordinate output
- NIR Auxiliary Light — Supports covert night operations and enhanced low-light zoom performance
- Night Scene Mode — Full-color and black-and-white night vision across wide and zoom cameras
- All-Weather Design — IP54-rated and built for demanding environments across public safety, energy, and infrastructure missions
Recognize, Zoom, and Measure
The Zenmuse H30 Series empowers operators with high-magnification zoom once a target is recognized using the wide camera view. The laser rangefinder provides distance and location information of a subject, which can be mission-critical in applications such as search and rescue, inspection, and more.
Laser ranging can measure the distance of objects within the measurement range (up to 3 km) and displays the distance from the aircraft, relative height, and GPS position of the measured object.

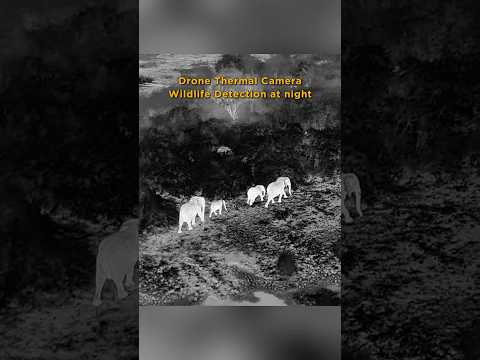

Radiometric Thermal Imaging H30T ONLY
Accurate temperature management on the H30T is made possible by its radiometric thermal imaging capabilities, enabling operators to take real-time, precise temperature readings and monitor subjects on a job site or critical infrastructure assets. Spot Metering lets you tap a point on the screen for an instant surface temperature reading, while Area Measurement lets you draw a box on the screen to display the lowest, highest, and average temperature of that area.
Thermal images captured with the Zenmuse H30T are saved in R-JPEG format, which embeds the image's temperature data. Using the DJI Thermal Analysis Tool, you can measure and evaluate temperatures when preparing reports, or adjust imaging parameters such as Emissivity and Reflected Temp.
Highlights
- 34× max. optical zoom and 400× max. digital zoom
- Optimized stabilization in telephoto video, with clarity maintained during zooming
- Faster focusing speed
- Active image stabilization and EIS
- Night scene mode
- IP54 rating with -20°C to 50°C (-4°F to 122°F) operating temperature
- Temp Alarm, Isotherms, Color Palettes, Gain Modes, and R-JPEG images H30T ONLY
Zenmuse H30 Series Specifications
| General | |
|---|---|
| Product Name | Zenmuse H30 Series |
| Dimensions | 170×145×165 mm (L×W×H) |
| Weight | 920±5 g |
| Power | H30: 26 W H30T: 28 W |
| Ingress Protection Rating | IP54 |
| Supported Aircraft | Matrice 400 Matrice 350 RTK Matrice 300 RTK (requires DJI RC Plus) |
| Environment | |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Gimbal | |
| Stabilization System | 3-axis (tilt, roll, pan) |
| Angular Vibration Range | Hover: ±0.002° Flight: ±0.004° |
| Mounting | Detachable DJI SKYPORT |
| Mechanical Range | Tilt: -132.5° to +73° Roll: ±60° Pan: ±328° (Structural limit, not controllable range) |
| Controllable Range | Tilt: -120° to +60° Pan: ±320° |
| Operation Mode | Follow / Free / Re-center |
| Zoom Camera | |
| Sensor | 1/1.8-inch CMOS, Effective Pixels: 40 MP |
| Lens | Actual Focal Length: 7.1-172 mm (Equivalent: 33.4-809.3 mm) Aperture: f/1.6-f/5.2 DFOV: 66.7°-2.9° |
| Focus Mode | MF, AFC, AFS |
| Exposure Mode | Manual, Auto |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Spot Metering, Average Metering |
| AE Lock | Supported |
| Electronic Shutter Speed | 1/8000-2 s |
| ISO Range | Single Shot: 100-25600 Night Scene: 100-819200 |
| Video Resolution | Single Shot: 3840×2160@30fps, 1920×1080@30fps Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Video Codec and Bit Rate Strategy | H.264, H.265 CBR, VBR |
| Max Photo Size | 7328×5496, 3664×2748 |
| Photo Format | JPG |
| Wide-Angle Camera | |
| Sensor | 1/1.3-inch CMOS, Effective Pixels: 48 MP |
| Lens | Actual Focal Length: 6.72 mm (Equivalent: 24 mm) Aperture: f/1.7 DFOV: 82.1° |
| Focus Mode | MF, AFC, AFS |
| Exposure Mode | Manual, Auto |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Spot Metering, Average Metering |
| AE Lock | Supported |
| Electronic Shutter Speed | 1/8000-2 s |
| ISO Range | Single Shot: 100-25600 Night Scene: 100-409600 |
| Video Resolution | Single Shot: 3840×2160@30fps, 1920×1080@30fps Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Video Codec and Bit Rate Strategy | H.264, H.265 CBR, VBR |
| Max Photo Size | 8064×6048, 4032×3024 |
| Photo Format | JPG |
| Infrared Thermal Camera (H30T Only) | |
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | Focal Length: 24 mm (Equivalent: 52 mm) Aperture: f/0.95 DFOV: 45.2° |
| Digital Zoom Equivalent | 32× |
| Video Resolution | 1280×1024@30fps |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Video Codec and Bit Rate Strategy | H.264, H.265 CBR, VBR |
| Photo Resolution | 1280×1024 |
| Photo Format | R-JPEG |
| Pixel Pitch | 12 μm |
| Spectral Band | 8-14 μm |
| NETD | ≤ 50 mK @ f/1.0 |
| Temperature Measurement Method | Spot Measurement, Area Measurement, Center Point Temperature Measurement |
| Temperature Measurement Range | High Gain: -20° to 150° C (-4° to 302° F); -20° to 450° C (-4° to 842° F) with Infrared Density Filter Low Gain: 0° to 600° C (32° to 1112° F); 0° to 1600° C (32° to 2912° F) with Infrared Density Filter |
| Temperature Alert | Supported |
| Sun Burn Protection | Supported |
| FFC | Auto, Manual |
| Palette | White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron |
| Laser Range Finder | |
| Wavelength | 905 nm |
| Measurement Range | 3-3000 m Common objects: grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m* |
| Measurement Accuracy | ≤ 500 m: ±(0.2 m + measurement distance × 0.15%) > 500 m: ±1.0 m |
| Laser Spot Size | @100 m: approx. 50×450 mm @1000 m: approx. 450×4500 mm |
| Safety Regulation Level | Class 1 |
| Accessible Emission Limit (AEL) | 260 nJ |
| Reference Aperture | 18 mm |
| Max Laser Pulse Emission Power Within 5 ns | 52 W |
| NIR Auxiliary Light | |
| Wavelength | 850 nm |
| FOV | 4.6±0.6° (Round) |
| Safety Regulation Level | Class 1 |
| Illumination Range | @100 m: approx. 8 m diameter circle |
| Special Features | |
| Hybrid Optical Zoom | 34× |
| Max Zoom | 400× |
| Link Zoom | Supported |
| Click to Aim | Supported |
| High-Res Grid Photo | Supported |
| Night Scene | Supported |
| Timestamp | Supported |
| Smart Capture | Supported |
| Video Pre-Recording | Supported |
| UHR Infrared Image | Supported (H30T) |
| Data Storage | |
| Supported microSD Cards | U3/Class10/V30 or above required, or a card from the recommended list |
| Supported File System | exFAT |
| Recommended microSD Cards | Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC |
| Post-Processing Software | |
| Mapping Software | DJI Terra, DJI FlightHub 2 |
| Infrared Analysis Software | DJI Thermal Analysis Tool 3 |
IP54 rating achieved under controlled laboratory conditions per IEC 60529. The rating is not permanently effective and may decrease due to wear and tear.
* Laser measurement range may vary with the material and shape of the target, gimbal angle, ambient light, and weather such as rain or fog. If a pulse hits multiple targets, its energy is dispersed and measurable distance may be reduced. Test conditions: flat subject larger than the beam diameter, 23 km atmospheric visibility, angle of incidence approx. 0.2 radians.
The Zenmuse H30 Series supports the Security Code function. Set a code under Data and Privacy in DJI Pilot 2 to encrypt the installed microSD card; use the DJI Decrypt Tool on a Windows computer to access card contents.

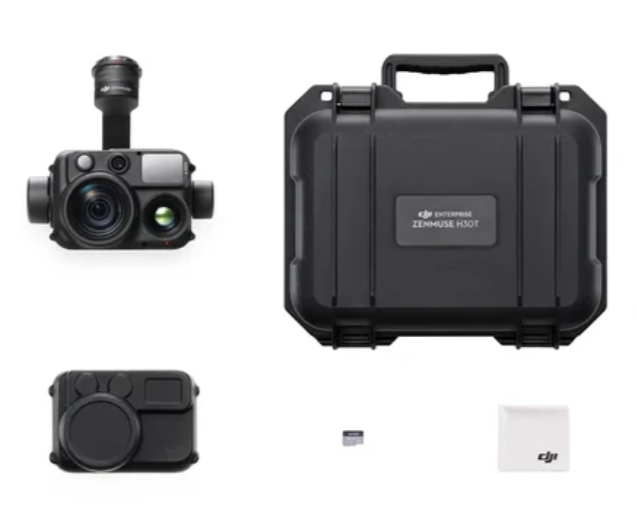

What's in the Box
- DJI Zenmuse H30 or H30T (based on selected model) × 1
- Lens Cap × 1
- Storage Case × 1
- Lens Cleaning Cloth × 1
Aircraft, remote controller, and microSD card sold separately. Compatible with Matrice 400, Matrice 350 RTK, and Matrice 300 RTK (with DJI RC Plus).
