DJI Matrice 4TD Drone

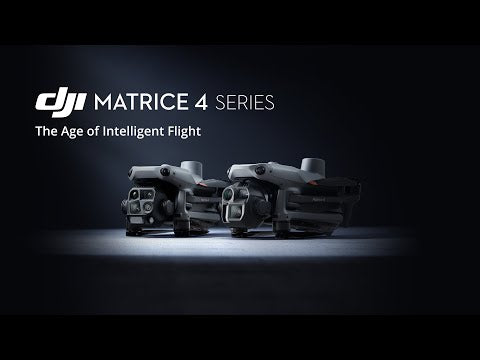

DJI Matrice 4D & 4TD: Water and Dust-Resistant Enterprise Drones for Mapping, Inspection & Public Safety
The DJI Matrice 4D and Matrice 4TD are next-generation, water and dust-resistant enterprise drones engineered for seamless integration with DJI Dock 3, delivering extended flight time for automated, large-scale operations. For standalone missions, both models pair effortlessly with the DJI RC Plus 2 Enterprise remote controller.
Each drone comes equipped with a powerful four-sensor payload: a wide-angle camera, a medium tele camera, a tele camera, and a built-in Laser Range Finder - enabling precise data capture across diverse use cases.
DJI Matrice 4D: Precision Mapping & Surface Inspection
Purpose-built for professional high-precision mapping and detailed surface inspections, the Matrice 4D delivers the accuracy and reliability demanded by surveying, construction, and infrastructure monitoring professionals.
DJI Matrice 4TD: Thermal Imaging for Inspection, Emergency Response & Public Safety
The Matrice 4TD adds an infrared thermal camera and an all-new NIR (near-infrared) auxiliary light to the platform, making it ideal for infrastructure inspections, emergency response operations, and public safety missions - even in low-light or night conditions.
Features
- 20 MP wide-angle camera with 4/3 CMOS sensor and mechanical shutter.
- Dual 48 MP medium tele and tele cameras for detailed inspection tasks.
- Integrated laser range finder measures distances up to 1,800 m.
- Up to 47 minutes of flight time, extending to 54 minutes during forward flight.
- IP55-rated for dust and water resistance.
- Can operate standalone with RC Plus 2 or be integrated into DJI Dock 3 workflows.
- Omnidirectional obstacle sensing with wire-level detection down to 12 mm.
Specifications
| Spec | Detail |
|---|---|
| Weight | 1850 g |
| Max Flight Time | 54 minutes |
| Max Hovering Time | 47 minutes |
| Max Operating Radius | 10 km |
| Max Flight Distance | 43 km |
| Ingress Protection | IP55 |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Thermal Camera | 640 x 512, f/1.0, ~53mm equivalent, UHR Infrared super-resolution 1280 x 1024 |
| Wide-Angle Camera | 1/1.3" CMOS, 48 MP f/1.7, ~24mm equivalent |
| Medium Tele Camera | 1/1.3" CMOS, 48 MP f/2.8, ~70mm equivalent |
| Manufacturer SKU | CP.EN.00000597.01 |
| Compatible With | DJI Dock 3, DJI RC Plus 2 Enterprise |
Applications
From emergency response to energy infrastructure, the Matrice 4TD adapts to the industries that rely on aerial thermal and visual data most.
-
Public Safety
Gives first responders a faster, safer way to assess a scene, cutting response times and operational costs while keeping personnel out of harm's way.
-
Powerline Inspection
Supports utility teams monitoring construction, running inspections, and handling maintenance across electrical grids and plants.
-
Geographic Information
Streamlines topographic surveys and a range of mapping data outputs, lowering operational cost per project.
-
Oil and Natural Gas
Improves efficiency in management, inspection, and construction across oil and gas operations while reducing costs.
-
Renewable Energy
Automates inspection along set flight paths, helping protect personnel and boost power generation output.
-
Roads and Bridges
High-resolution and thermal imaging allow close inspection of critical components such as decks, piers, and cables.
-
Water Conservancy & Maritime
Aids monitoring and inspection work across waterways, dams, and maritime infrastructure.
What's Included
- 1x DJI Matrice 4TD Aircraft
- 1x Pair of CW Low-Noise Anti-Ice Propellers
- 1x Pair of CCW Low-Noise Anti-Ice Propellers
- Screws and Washers
- Battery Not Included
- Remote controller not included
