The DJI Matrice 4E is a compact, multi-sensor enterprise drone built for geospatial professionals needing survey-grade imaging and RTK-level positioning in a portable, rapidly deployable package.
Features
- Triple-sensor imaging: 20 MP wide, 48 MP medium tele, and 48 MP tele cameras on one gimbal.
- Laser rangefinder measures distances up to 1,800 m without ground contact.
- RTK positioning delivers 1 cm + 1 ppm horizontal accuracy for survey-grade data.
- GCP-free mapping supported via the wide-angle camera with mechanical shutter.
- Up to 49 minutes of flight time per battery charge.
- Omnidirectional obstacle sensing active at flight speeds up to 21 m/s.
- O4 Enterprise transmission reaches up to 25 km (FCC).
- Folds to a compact carry-case size for rapid multi-site deployment.
Crystal Clear Vision: Unveil the Details
Capture Every Detail at A Distance
Enhanced Medium Telephoto
The Matrice 4 series is equipped with a medium tele camera, expanding its capabilities for medium-range inspection tasks. During power line or bridge inspections, it can detect screws and cracks from a distance of 10 meters and clearly read instrument data at substations.
Super Resolution Telephoto
The tele camera of the Matrice 4 series has significantly improved clarity, featuring 48 MP resolution, capable of capturing incredibly details from signs up to 250 meters away. Additionally, the Matrice 4T is equipped with an IR-Cut Filter, ensuring 24/7 operations.
Foreground Stabilization for Telephoto Imagery
The upgraded telephoto stabilization makes foreground subjects stable and clear during telephoto shooting at 10x zoom or higher. In scenarios such as public safety and inspections, subject details are clearly visible.
Electronic Dehazing, Clear as Ever
In conditions such as smog or atmospheric humidity, Electronic Dehazing supports three modes (Low, Medium, High) to improve the imaging clarity of the Matrice 4 series to match different operational environments and requirements.
Precision Mapping, Time-Saving and Effortless
Rapid 0.5-Second Interval Shooting
The Matrice 4E wide-angle camera supports rapid 0.5-second interval shooting in both orthophoto and oblique photography modes, enabling high-speed aerial surveying from multiple angles. Additionally, the mapping flight speed can reach up to 21 meters per second, significantly enhancing work efficiency.
Multi-Directional Capture, Efficiency Multiplied
The Matrice 4 series supports a new 5-directional oblique capture. The gimbal can intelligently rotate and shoot at multiple angles based on the survey area, achieving the effect of multiple shots in a single flight compared to previous models, significantly enhancing the efficiency of small drone oblique photography.
3-Directional Ortho Capture
Matrice 4E supports 3-directional ortho capture, enabling lateral capturing while performing ortho collection tasks, which reduces lateral overlap. A single flight can complete mapping operations for an area of 2.8 square kilometers. No additional elevation optimization flight route is required to achieve better elevation accuracy. Combined with new DJI Terra capabilities, it further enhances reconstruction efficiency while ensuring quality.
Safe Flight, Worry-Free Operation
Fusion Positioning, Safe Return-to-Home
The Matrice 4 series comes with an integrated DJI RTK module which supports the extended L5 frequency band and features GNSS+Vision Fusion Positioning and Navigation System. It allows for the return-to-home point to be updated through visual positioning, allowing for rapid takeoff within 15 seconds. Even without GNSS signals, it can complete the return-to-home process, effectively overcoming signal obstructions and interference commonly found in urban environments.
Intelligent Guidance, Unobstructed Flight
When the DJI RC Plus 2 Enterprise remote controller is connected to the internet, it can load terrain elevation maps and preload detailed maps. This enables automatic path planning for obstacle avoidance, effectively managing scenarios such as flying at night or through mountainous areas, ensuring the safety of flight operations. The drone has a 5-directional vision assist view system along with downward vision, which aids in providing comprehensive visibility for enhanced protection.
Achieve New Heights in Video Transmission
The O4 Enterprise video transmission system sets a new industry standard for challenging environments. Thanks to the 8-antenna system in the Matrice 4 Series and the high-gain antenna in the remote controller, you can achieve up to 25 kilometers in transmission range. Furthermore, the system improves image transmission with a download bandwidth of 20MB/s, more than double the bitrate of the Mavic 3 Enterprise Series, ensuring more precise and stable images of route uploads and material downloads.
Specifications
| Aircraft | |
|---|---|
| Rotor Configuration | Quadcopter |
| Propeller Size | 10.8" |
| Weight | 2.7 lb / 1219 g (with propellers, battery); 3.1 lb / 1420 g (with maximum payload) |
| Overall Dimensions | 10.3 x 5.4 x 4.5" / 260.6 x 138.4 x 113.7 mm (folded); 15.3 x 12.1 x 5.9" / 387.5 x 307.0 x 149.5 mm (unfolded) |
| Diagonal Size | 17.3" / 438.8 mm |
| Aircraft I/O | 1x USB-C (Data), 1x E-Port (Expansion) |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Remote ID | Yes |
| Performance | |
| Maximum Flight Time | 49 minutes |
| Maximum Hover Time | 42 minutes |
| Maximum Horizontal Speed | 47 mph / 75.6 km/h |
| Maximum Ascent Speed | 22.4 mph / 36.0 km/h |
| Maximum Descent Speed | 17.9 mph / 28.8 km/h |
| Maximum Wind Resistance | 26.8 mph / 43.1 km/h |
| Maximum Take-Off Altitude | 3.7 miles / 6 km |
| Maximum Tilt Angle | 35° |
| Hovering Accuracy | Vision Positioning: ±0.3' / 0.1 m; RTK: ±0.3' / 0.1 m; GNSS: ±1.6' / 0.5 m |
| Imaging | |
| Number of Cameras | 4 (cannot be used simultaneously) |
| Wide Camera | 20 MP, 4/3"-type CMOS sensor, 24mm-equivalent f/2.8 lens (84° FoV) |
| Medium Telephoto Camera | 48 MP, 1/1.3"-type CMOS sensor, 70mm-equivalent f/2.8 lens (35° FoV) |
| Telephoto Camera | 48 MP, 1/1.5"-type CMOS sensor, 168mm-equivalent f/2.8 lens (15° FoV) |
| Zoom | 112x optical |
| Minimum Focus Distance | Wide: 3.3' / 1 m; Medium Tele: 9.8' / 3 m; Tele: 9.8' / 3 m |
| ISO Sensitivity Range | Wide: 100-25,600 (ext. 100-204,800); Medium Tele/Tele: 100-25,600 (ext. 100-409,600) |
| Night Vision | No |
| Shutter Speed | Wide (Electronic): 1/8000-2 sec; Wide (Mechanical): 1/2000-2 sec; Medium Tele/Tele: 1/8000-2 sec |
| Maximum Video Resolution | Up to UHD 4K at 30 fps (all cameras) |
| Still Image Support | Wide: up to 20.8 MP (DNG/JPEG/Raw); Medium Tele: up to 48.7 MP (JPEG); Tele: up to 50.3 MP (JPEG) |
| Photo Modes | Interval, Single Shot |
| Memory Card Slot | Aircraft: microSD/microSDHC/microSDXC; Remote: SD/SDHC/SDXC |
| Internal Storage | 128 GB (in remote/transmitter) |
| Gimbal | |
| Number of Axes | 3: Pitch (Tilt), Roll, Yaw (Pan) |
| Controllable Range | Pitch: 125° (-90° to 35°) |
| Mechanical Range | Yaw: 130° (-65° to 65°); Roll: 104° (-52° to 52°); Pitch: 190° (-140° to 50°) |
| Follow Speed | Tilt: 100°/s |
| Stabilization Accuracy | ±0.007° |
| Sensing System | |
| System Type | Omnidirectional with infrared/LiDAR enhancement |
| Forward | Range: 1.3-656.2' / 0.4-200 m; Max Speed: 47 mph / 75.6 km/h; FoV: 90° (H) / 135° (V) |
| Backward | Range: 1.3-656.2' / 0.4-200 m; Max Speed: 47 mph / 75.6 km/h; FoV: 90° (H) / 135° (V) |
| Lateral | Range: 1.6-656.2' / 0.5-200 m; Max Speed: 47 mph / 75.6 km/h; FoV: 90° (V) / 90° (H) |
| Downward | Range: 1.0-61.7' / 0.3-18.8 m; Max Speed: 22.4 mph / 36 km/h; FoV: 160° (Front-Back) / 160° (Side-Side) |
| Remote Controller / Transmitter | |
| Control Method | Included transmitter |
| Transmission System | OcuSync 4.0 (OC4) - 2.4 GHz / 5.1 GHz / 5.8 GHz; Wi-Fi 6 (802.11ax); Bluetooth 5.2 |
| Maximum Operating Distance | 15.5 miles / 25 km |
| Transmitter I/O | 1x USB-C (Power), 1x HDMI (Video), 1x USB-A (Data) |
| Clean Video Output | No |
| Battery Type | Built-in lithium-ion (6500 mAh) |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Mobile App Compatible | No |
| Built-In Display | 7.02" (1920 x 1200) touchscreen LCD, 1400 nits |
| Dimensions | 10.6 x 6.4 x 3.7" / 268 x 163 x 94.5 mm |
| Flight Battery | |
| Battery Chemistry | Lithium-Ion |
| Battery Capacity | 6741 mAh / 99.5 Wh |
| Battery Configuration | 4S / 14.76 V |
| Maximum Charging Power | 17 V |
| Charging Temperature | 41 to 104°F / 5 to 40°C |
| Weight | 14.1 oz / 401 g |
| Charger | |
| Input Power | 100-240 VAC, 50/60 Hz at 2.5 A |
| Output Voltage | 17 V |
| Power Rating | 100 W |
| General | |
| GNSS Support | GPS, GLONASS, BeiDou, Galileo |
| Packaging Info | |
| Package Weight | 16.25 lb |
| Box Dimensions (L x W x H) | 18.1 x 15.8 x 10.3" |
Applications
From emergency response to energy infrastructure, the Matrice 4E adapts to the industries that rely on precise aerial imaging and mapping data most.
-
Public Safety
Gives first responders a faster, safer way to assess a scene, cutting response times and operational costs while keeping personnel out of harm's way.
-
Powerline Inspection
Supports utility teams monitoring construction, running inspections, and handling maintenance across electrical grids and plants.
-
Geographic Information
Streamlines topographic surveys and a range of mapping data outputs, lowering operational cost per project.
-
Oil and Natural Gas
Improves efficiency in management, inspection, and construction across oil and gas operations while reducing costs.
-
Renewable Energy
Automates inspection along set flight paths, helping protect personnel and boost power generation output.
-
Roads and Bridges
High-resolution imaging and laser rangefinding allow close inspection of critical components such as decks, piers, and cables.
-
Water Conservancy & Maritime
Aids monitoring and inspection work across waterways, dams, and maritime infrastructure.

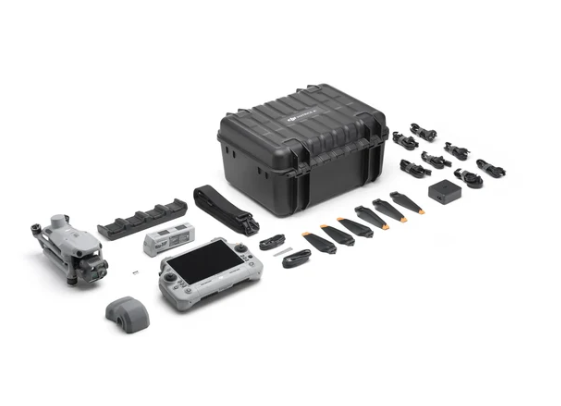

What's Included
- 1x DJI Matrice 4E
- 1x DJI Matrice 4 Series Battery
- 1x DJI RC Plus 2 Enterprise
- 1x DJI 100W USB-C Power Adapter
- 1x DJI Matrice 4 Series Charging Hub
- 1x microSD Card
- 1x DJI Matrice 4E Gimbal Protector
- 1x DJI Cellular Dongle 2 Pry Bar
- 3x DJI Matrice 4 Series Propellers
- 1x 100W Power Adaptor AC Cable
- 1x USB-C to USB-C Data Cable
- 1x USB-A to USB-C Data Cable

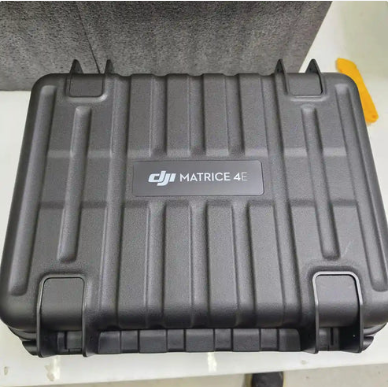

- 1x DJI Matrice 4 Series Storage Case
- 1x DJI Matrice 4 Series Storage Case Shoulder Strap
- 1 year free DJI Terra Pro License
