Dock 3 Compatible Drone System

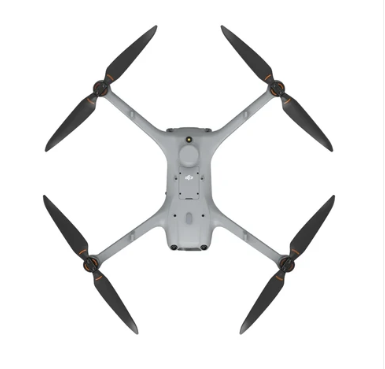

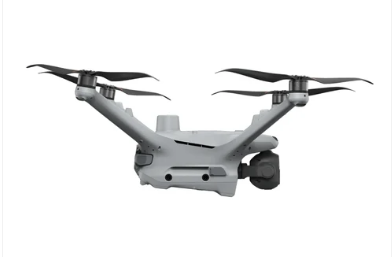

DJI Matrice 4D Drone
DJI Matrice 4D & 4TD: Water and Dust-Resistant Enterprise Drones for Mapping, Inspection & Public Safety
The DJI Matrice 4D and Matrice 4TD are next-generation, water and dust-resistant enterprise drones engineered for seamless integration with DJI Dock 3, delivering extended flight time for automated, large-scale operations. For standalone missions, both models pair effortlessly with the DJI RC Plus 2 Enterprise remote controller.
Each drone comes equipped with a powerful four-sensor payload: a wide-angle camera, a medium tele camera, a tele camera, and a built-in Laser Range Finder - enabling precise data capture across diverse use cases.
DJI Matrice 4D: Precision Mapping & Surface Inspection
Purpose-built for professional high-precision mapping and detailed surface inspections, the Matrice 4D delivers the accuracy and reliability demanded by surveying, construction, and infrastructure monitoring professionals.
DJI Matrice 4TD: Thermal Imaging for Inspection, Emergency Response & Public Safety
The Matrice 4TD adds an infrared thermal camera and an all-new NIR (near-infrared) auxiliary light to the platform, making it ideal for infrastructure inspections, emergency response operations, and public safety missions - even in low-light or night conditions.
Features
- 20 MP wide-angle camera with 4/3 CMOS sensor and mechanical shutter.
- Dual 48 MP medium tele and tele cameras for detailed inspection tasks.
- Integrated laser range finder measures distances up to 1,800 m.
- Up to 47 minutes of flight time, extending to 54 minutes during forward flight.
- IP55-rated for dust and water resistance.
- Can operate standalone with RC Plus 2 or be integrated into DJI Dock 3 workflows.
- Omnidirectional obstacle sensing with wire-level detection down to 12 mm.
Specifications
Aircraft
| Spec | Detail |
|---|---|
| Weight | 1850 g Includes battery, propellers, and microSD card; excludes third-party payloads. |
| Max Takeoff Weight | 2090 g |
| Dimensions | 377.7 × 416.2 × 212.5 mm Without propellers. |
| Diagonal Wheelbase | 498.5 mm |
| Max Ascent Speed | 6 m/s (Normal), 10 m/s (Sport) |
| Max Descent Speed | 6 m/s (Normal), 8 m/s (Sport) |
| Max Horizontal Speed (at sea level, no wind) | 15 m/s forward (Normal, obstacle sensing on); 21 m/s forward (Sport) |
| Max Wind Speed Resistance | 12 m/s During operation and takeoff/landing. |
| Max Takeoff Altitude | 6500 m |
| Max Flight Time | Up to 54 minutes |
| Max Hovering Time | Up to 47 minutes |
| Max Operating Radius | 10 km |
| Max Flight Distance | 43 km |
| Max Pitch Angle | 25° (Normal), 30° (Sport) |
| Max Angular Velocity | 200°/s |
| GNSS | GPS + BeiDou + Galileo + QZSS + GLONASS QZSS and GLONASS supported when the RTK module is enabled. |
| Hover Accuracy | ±0.1 m (RTK vertical), ±0.1 m (RTK horizontal) |
| Operating Temperature | -20° to 50°C (-4° to 122°F) |
| Ingress Protection | IP55 |
| Motor Model | 2611 |
| Propellers | 1364F foldable low-noise anti-ice |
| RTK Module | Integrated |
| Beacon | Integrated |
Camera System
| Spec | Detail |
|---|---|
| Matrice 4D Sensors | Wide: 4/3 CMOS, 20 MP Medium Tele: 1/1.3" CMOS, 48 MP Tele: 1/1.5" CMOS, 48 MP |
| Matrice 4TD Sensors | Wide: 1/1.3" CMOS, 48 MP Medium Tele: 1/1.3" CMOS, 48 MP Tele: 1/1.5" CMOS, 48 MP |
| Lens (Wide) | 4D: FOV 84°, 24 mm equiv., f/2.8-f/11 4TD: FOV 82°, 24 mm equiv., f/1.7 |
| Lens (Medium Tele) | FOV 35°, 70 mm equiv., f/2.8 |
| Lens (Tele) | FOV 15°, 168 mm equiv., f/2.8 |
| Lens Defogging | Supported on wide, medium tele, and tele cameras |
| ISO (Normal) | 100-25600 |
| Max Photo Size | 4D - Wide: 5280×3956, Medium Tele: 8064×6048, Tele: 8192×6144 4TD - Wide: 8064×6048, Medium Tele: 8064×6048, Tele: 8192×6144 |
| Minimum Photo Interval | 4D: 0.5 s | 4TD: 0.7 s |
| Video Codec | H.264 / H.265 |
| Video Resolution | 4K 3840×2160@30fps; FHD 1920×1080@30fps |
| Video Bitrate | H.264: 60 Mbps | H.265: 40 Mbps |
| Supported File System | exFAT |
| Photo Format | 4D - Wide: JPEG/DNG (RAW), Medium Tele: JPEG, Tele: JPEG 4TD: JPEG |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
| Digital Zoom | Tele 16× (112× hybrid zoom) |
Laser Rangefinding (Aircraft Laser Module)
| Spec | Detail |
|---|---|
| Normal Incidence Range | 1800 m (1 Hz) @ 20% reflectivity |
| Oblique Incidence Range | 600 m (1 Hz) (1:5 oblique distance) |
| Blind Zone | 1 m |
| Accuracy (1-3 m) | System error <0.3 m; random error <0.1 m @ 1σ |
| Accuracy (Other Distances) | ±(0.2 + 0.0015D), D in meters |
Thermal Imaging (Matrice 4TD Only)
| Spec | Detail |
|---|---|
| Thermal Imager | Uncooled VOx microbolometer |
| Resolution | 640×512 (standard); up to 1280×1024 with UHR infrared image function enabled |
| Pixel Pitch | 12 μm |
| Frame Rate | 30 Hz |
| Lens | DFOV 45°, 53 mm equiv., f/1.0, focus 5 m to ∞ |
| Sensitivity | ≤50 mK@f/1.0 |
| Temperature Measurement | Spot and area |
| Range (High Gain) | -40° to 150°C (-40° to 320°F) |
| Range (Low Gain) | 0° to 500°C (32° to 932°F) |
| Accuracy | High gain: ±2°C or ±2% Low gain: ±5°C or ±3% |
| Photo Format | JPEG (8-bit), R-JPEG (16-bit) |
| Video Format | MP4 |
| Digital Zoom | 28× |
| Infrared Wavelength | 8-14 μm |
NIR Auxiliary Light (Matrice 4TD Only)
| Spec | Detail |
|---|---|
| Infrared Illumination FOV | 5.7° ± 0.3° |
Gimbal Specifications
| Spec | Detail |
|---|---|
| Stabilization | 3-axis mechanical gimbal (tilt, roll, pan) |
| Matrice 4D Mechanical Range | Tilt: -140° to +50°, Roll: -52° to +52°, Pan: -65° to +65° |
| Matrice 4TD Mechanical Range | Tilt: -140° to +113°, Roll: -52° to +52°, Pan: -65° to +65° |
| Matrice 4D Controllable Tilt | -90° to +35° |
| Matrice 4TD Controllable Tilt | -90° to +90° Upward tilt may obstruct cameras at +70° to +90°. |
| Max Control Speed (Tilt) | 100°/s |
| Angular Vibration Range | ±0.005° |
Obstacle Sensing
| Spec | Detail |
|---|---|
| Sensing Type | Omnidirectional binocular vision system + 3D infrared sensor (bottom) |
| Forward | 0.5-20 m measurement; up to 200 m detection; FOV 95° (H) / 90° (V) |
| Backward | 0.5-20 m measurement; FOV 95° (H) / 90° (V) |
| Lateral | 0.5-16 m measurement; FOV 90° (H) / 90° (V) |
| Upward | 0.5-20 m measurement; FOV 95° (front/back) / 90° (left/right) |
| Downward | 0.5-16 m measurement; FOV 90° (front/back) / 95° (left/right) |
Video Transmission
| Spec | Detail |
|---|---|
| Video Transmission System | DJI O4+ Enterprise |
| Live View | Up to 1080p/30fps (with DJI RC Plus 2 Enterprise) |
| Operating Frequency | 2.4 GHz, 5.1 GHz, 5.8 GHz Availability varies by region. |
| Max Transmission Distance (Unobstructed) | 25 km (FCC), 12 km (CE/SRRC/MIC) |
| Max Download Speed | 20 MB/s (DJI Dock 3 or DJI RC Plus 2 Enterprise) |
| Lowest Latency (Aircraft to Dock) | Approx. 100 ms |
| Antenna | 8 antennas, 2T4R |
| Cellular Support | Supports DJI Cellular Dongle 2 (sold separately; region dependent) |
Storage & Memory Card Support
| Spec | Detail |
|---|---|
| Memory Card Requirement | U3 / Class10 / V30 or above |
| Recommended microSD Cards | Lexar 1066x (64/128/256/512GB), Kingston Canvas Go! Plus (64/128/256/512GB) |
Battery Specifications
| Spec | Detail |
|---|---|
| Capacity | 6768 mAh |
| Voltage | 22.14 V |
| Max Charging Voltage | 25.5 V |
| Cell Type | Li-ion 6S |
| Chemical System | LiNiMnCoO2 |
| Energy | 149.9 Wh |
| Weight | 640 g |
| Cycle Count | 400 |
| Charging Temperature | 5° to 45°C (41° to 113°F) |
| Discharge Rate | 4C |
| Max Charging Power | 1.8C |
| Low-Temperature Charging | Supports self-heating charging |
Power Adapter Specifications
| Spec | Detail |
|---|---|
| Input | 100-240 V AC, 50/60 Hz, 3 A |
| Total Output | 240 W max |
| USB-C Output | 65 W max |
| Dual-Port Charging | USB-C max output is 45 W when both ports are used |
Applications
From precision mapping to energy infrastructure, the Matrice 4D adapts to the industries that rely on accurate aerial visual data most.
-
Public Safety
Gives first responders a faster, safer way to assess a scene, cutting response times and operational costs while keeping personnel out of harm's way.
-
Powerline Inspection
Supports utility teams monitoring construction, running inspections, and handling maintenance across electrical grids and plants.
-
Geographic Information
Streamlines topographic surveys and a range of mapping data outputs, lowering operational cost per project.
-
Oil and Natural Gas
Improves efficiency in management, inspection, and construction across oil and gas operations while reducing costs.
-
Renewable Energy
Automates inspection along set flight paths, helping protect personnel and boost power generation output.
-
Roads and Bridges
High-resolution imaging allows close inspection of critical components such as decks, piers, and cables.
-
Water Conservancy & Maritime
Aids monitoring and inspection work across waterways, dams, and maritime infrastructure.
What's Included
- 1x DJI Matrice 4D Aircraft
- 1x CW Low-Noise Anti-Ice Propellers (Pair)
- 1x CCW Low-Noise Anti-Ice Propellers (Pair)
- 1x Screws and Washers
Battery not included. Remote Controller not included.
