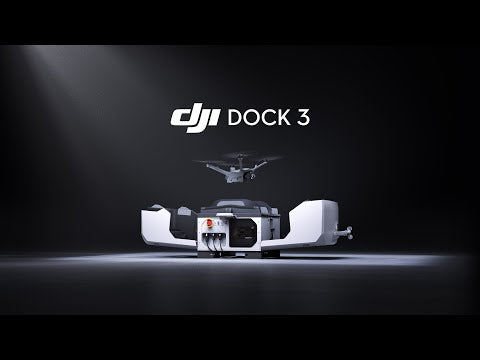

The DJI Dock 3 is an autonomous drone-in-a-box docking station equipped for Matrice 4D or Matrice 4TD deployment, supporting 24/7 remote operations. It is the first DJI Dock to support mobile vehicle-mounted deployment in addition to traditional fixed installations.
Built to Handle Anything Mother Nature Throws At It
- From scorching desert heat to bone-chilling arctic cold, this thing just keeps flying - comfortable in temps from a blazing 122°F all the way down to a bitter -30°C! Keep flights smooth and steady when conditions turn icy.
- Don't let wind stop the mission! The Matrice 4D/4TD takes off and lands like a champ in gusts up to 12 m/s, and can stay in the air for a full 32 minutes even while battling the breeze.
- Tough as nails on the inside - every critical component is shielded and ready to perform no matter how brutal the environment gets.
- Set it up your way - mount it on a vehicle for missions on the move, or park it at a fixed site and stretch your range up to an incredible 15+ miles with the relay booster!
- It practically sees everything - a spinning laser scanner paired with radar lets it spot and dodge obstacles as thin as a wire, keeping every flight safe.
- Run the whole show from one easy-to-use command center, complete with smart mapping tools and automatic route planning that does the heavy lifting for you.
Specifications
| Dock - General | |
|---|---|
| Product Name | DJI Dock 3 |
| Total Weight | 55 kg (without aircraft)The actual product weight may vary due to differences in batch materials and external factors. |
| Dimensions | Dock Cover Opened: 1760×745×485 mm (L×W×H) Dock Cover Closed: 640×745×770 mm (L×W×H)All data includes the RTK module width (160 mm), wind speed gauge height (145 mm), and mounting base brackets (58 mm). |
| Input Voltage | 100-240 V (AC), 50/60 Hz |
| Input Power | Max 800 W |
| Operating Temperature | -30° to 50° C (-22° to 122° F) |
| Ingress Protection Rating | IP56 |
| Number of Drones Accommodated | 1 |
| Max Allowable Landing Wind Speed | 12 m/s |
| Max Operating Altitude | 4500 m |
| Receiving Frequency of RTK Base Station Satellite | Simultaneously receive: GPS: L1 C/A, L2, L5 BeiDou: B1I, B2I, B3I, B2a, B2b, B1C GLONASS: F1, F2 Galileo: E1, E5a, E5b, E6 QZSS: L1, L2, L5 |
| Dock - Charging Performance | |
| Output Voltage | 35 V DC |
| Charging Time | 27 minutesThe data was measured when charging the aircraft (when powered off) from 15% to 95% in a 25° C (77° F) environment. |
| Dock - Video Transmission | |
| Operating Frequency | 2.400-2.4835 GHz 5.150-5.250 GHz (CE: 5.170-5.250 GHz) 5.725-5.850 GHzThe supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations. |
| Antenna | Built-in 9 antennas, 2T4R, supports intelligent switching |
| Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) 5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE) 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC) |
| Dock - Air Conditioning System | |
| Operating Voltage | 48 V DC |
| Air Conditioning Type | Compressor-based air conditioning |
| Dock - Backup Battery | |
| Battery Capacity | 12 Ah |
| Output Voltage | 12 V |
| Battery Type | Lead-acid battery |
| Battery Life | > 4 hoursMeasured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning operation, dock cover heating, and wind speed gauge heating. Please restore power promptly. |
| Dock - Network Access | |
| Ethernet Access | 10/100/1000 Mbps adaptive Ethernet port |
| 4G Access | Requires DJI Cellular Dongle 2Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details. |
| Dock - Sensor | |
| Wind Speed Sensor | Supported |
| Rainfall Sensor | Supported |
| Ambient Temperature Sensor | Supported |
| Water Immersion Sensor | Supported |
| In-Cabin Temperature Sensor | Supported |
| In-Cabin Humidity Sensor | Supported |
| Dock - Security Camera (External) | |
| Resolution | 1920×1080 |
| Field of View (FOV) | 151° |
| Auxiliary Light | Auxiliary White Light |
| Dock - Security Camera (Internal) | |
| Resolution | 1920×1080 |
| Field of View (FOV) | 151° |
| Auxiliary Light | Auxiliary White Light |
| Dock - Lightning Protection | |
| AC Power Port | 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements |
| Ethernet Port | 10 kA (Itotal), meets EN/IEC 61643-21 Category C protection level requirements |
| Dock - Supported Software | |
| Applications | DJI Enterprise app (used with Android phones for deployment and commissioning) |
| Cloud Platform | FlightHub 2 FlightHub 2 On-Premises Version FlightHub 2 FlightHub Sync DJI Cloud API |
| Dock - Expansion Capability | |
| Edge Computing | Supports data communication with external switches |
What's Included
- 1x Dock Body (incl. Ground Wire)
- 1x Wind Speed Gauge Module
- 4x Expansion Bolt
- 1x Ethernet Cable Connector
- 1x Power Cable Connector
- 1x Wire Ferrule
- 1x Screws and Tools
- 1x Manuals
Note: DJI Matrice 4D / 4TD aircraft sold separately.
