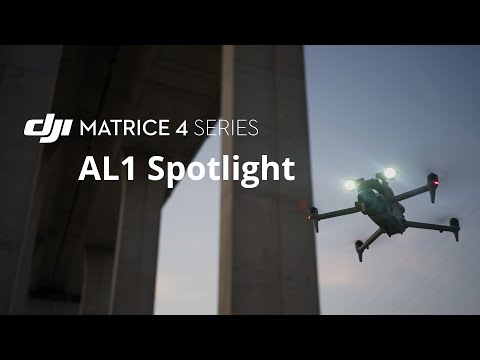

The DJI AL1 Spotlight extends night-flying capability for the Matrice 4E and 4T, casting illumination up to 328 feet (100 m) with always-on and strobe lighting modes. Intelligent gimbal linking keeps the light aligned with the camera's field of view in real time, making it a purpose-built payload for search and rescue and law enforcement missions after dark.
Features
- Illuminates subjects clearly from up to 100 meters (328 ft) away.
- Two lighting modes: always-on and strobe.
- Wide FOV lighting mode covers up to 2,200 square meters.
- Intelligent gimbal linking keeps the light aligned with the camera's view.
- IP55-rated for reliable performance across weather conditions.
Specifications
| Weight | 91 g (excluding bracket) |
| Dimensions | 79 × 164 × 28 mm (L × W × H, excluding bracket) |
| Maximum Power | 32 W |
| Illuminance | 4.3 ± 0.2 lux @ 100 m 17 ± 0.2 lux @ 50 m* |
| Effective Illumination Angle | 23° (10% relative illuminance) |
| Effective Illumination Area | 1,300 sq m @ 100 m (10% relative illuminance, Normal Mode) 2,200 sq m @ 100 m (10% relative illuminance, Wide FOV Mode) |
| Modes | Always-on and strobe |
| Gimbal Mechanical Range (Tilt) | -140° to 50° |
| Gimbal Controllable Range (Tilt) | -90° to 35° |
| Max Control Speed (Tilt) | 120°/s |
| Gimbal Alignment Accuracy | ±0.1° |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
| Mounting Method | Quick-release hand-tightened screws |
| Protection Rating | IP55 (with Matrice 4D Series) |
| Manufacturer SKU | CP.EN.00000579.01 |
| UPC | 190021131279 |
| Compatible With | DJI Matrice 4 Series |
* Measured in a laboratory environment with the spotlight installed separately on the aircraft at an ambient temperature of 25° C (77° F).
What's Included
- 1 × DJI AL1 Spotlight Payload
- 2 × Spare Screws
- 1 × Hex Key
