See It. Fly It. Race It.

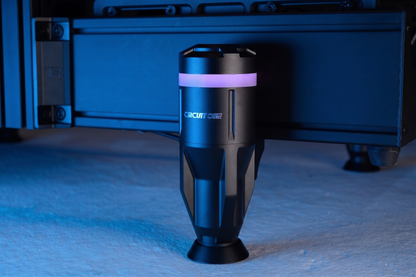

The Circuit One D Force 1 Motion System turns your sim's telemetry into real, physical feedback — ABS chatter, wheel lock, traction loss, gear shifts — felt through your rig in real time. It's fully CNC-machined aluminum, the most compact 4-axis unit in its class, and it ships with a free software ecosystem that ties everything together.
See the Circuit One D Force 1 in action
- Feel every detail — large movements signal direction changes, while small, high-frequency cues communicate suspension, road texture, and vibration.
- Real-time haptic feedback — ABS activation, traction control, wheel lock, and gear shifts delivered through your rig with low latency.
- Serious lifting power — 180 kg of lift per axis with 50 mm of stroke and a 0–100 Hz frequency range.

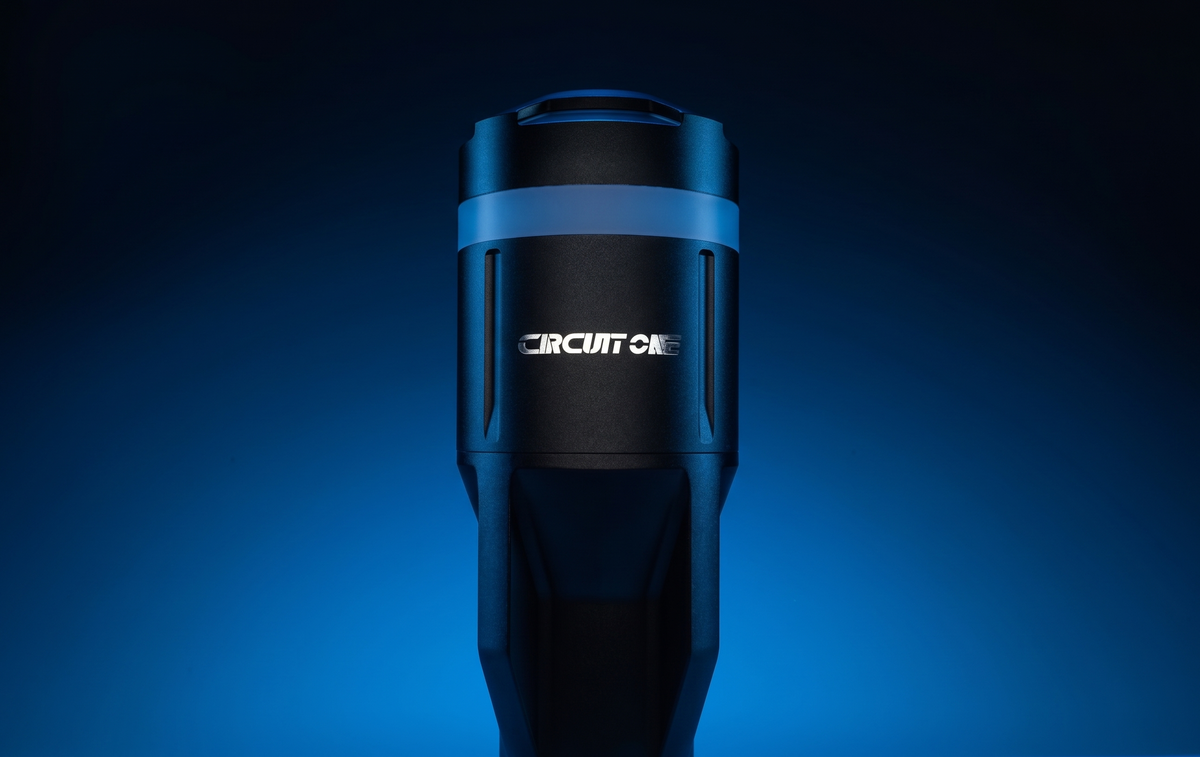

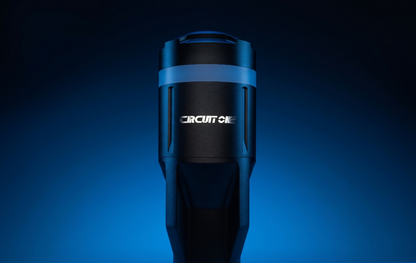

- Smallest 4-axis unit in its class — each actuator measures just 257 × 95 mm.
- All-aluminum build — fully CNC-machined with no plastic components.

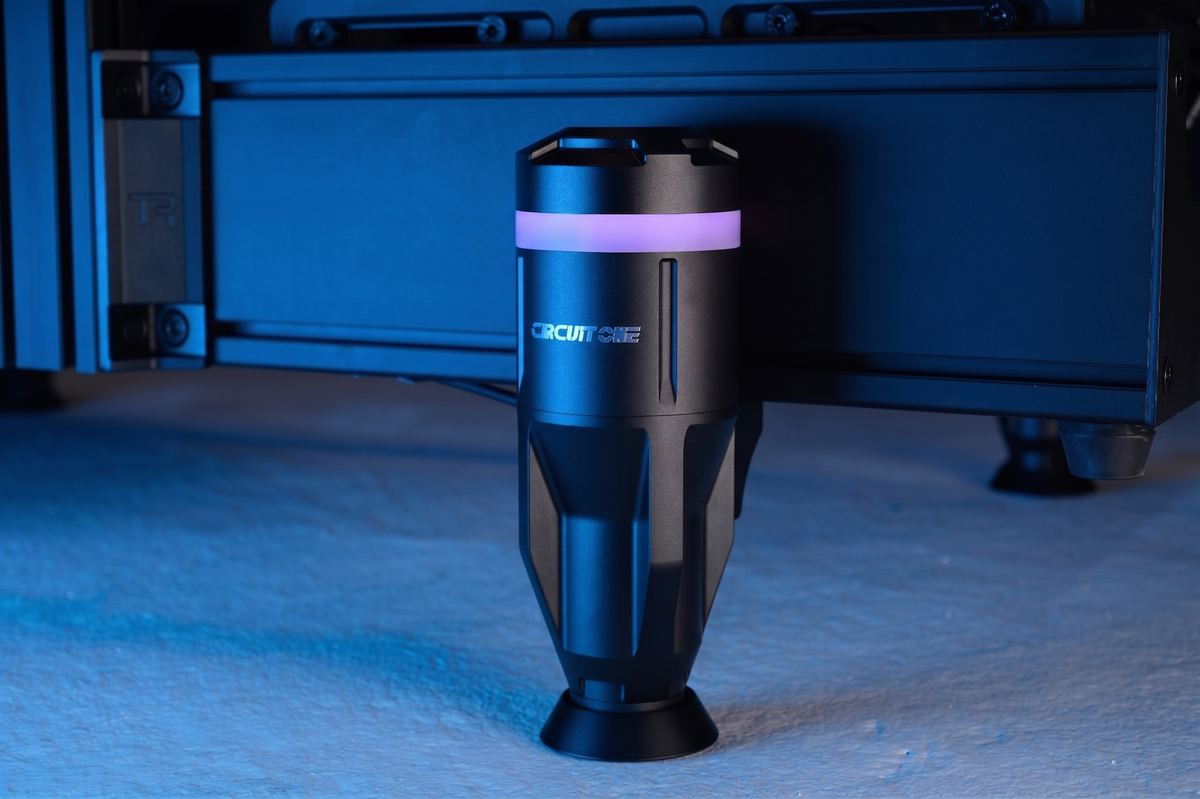

- 8-screw installation — mounts to standard 8020 aluminum-profile rigs with M8×20 bolts; one cable per axis keeps wiring clean.
- Circuit Manager software — tune pitch, roll, heave, and frequency response per car, game, or rig, with 20+ factory presets, RPM lights, and over-the-air firmware updates.
- RGB telemetry lighting — LED indicators for ABS, TC, and flag signals with 32 colors and strobe options.
- Game Launcher — automatically loads the correct profile for supported titles.
Specifications
| Spec | Detail |
|---|---|
| Haptic Axes | 4-axis system |
| Lift Per Axis | 180 kg |
| Stroke | 50 mm |
| Frequency Range | 0–100 Hz |
| Actuator Footprint | 257 mm × 95 mm |
| Construction | CNC-machined aluminum |
| Installation | 8 screws total; M8×20 bolts to 8020 aluminum profile |
| Control Box | LINK Controller |
| Software | Circuit Manager with OTA firmware updates |
| Platform | Windows PC |
| Power | Power supply included |
What's Included

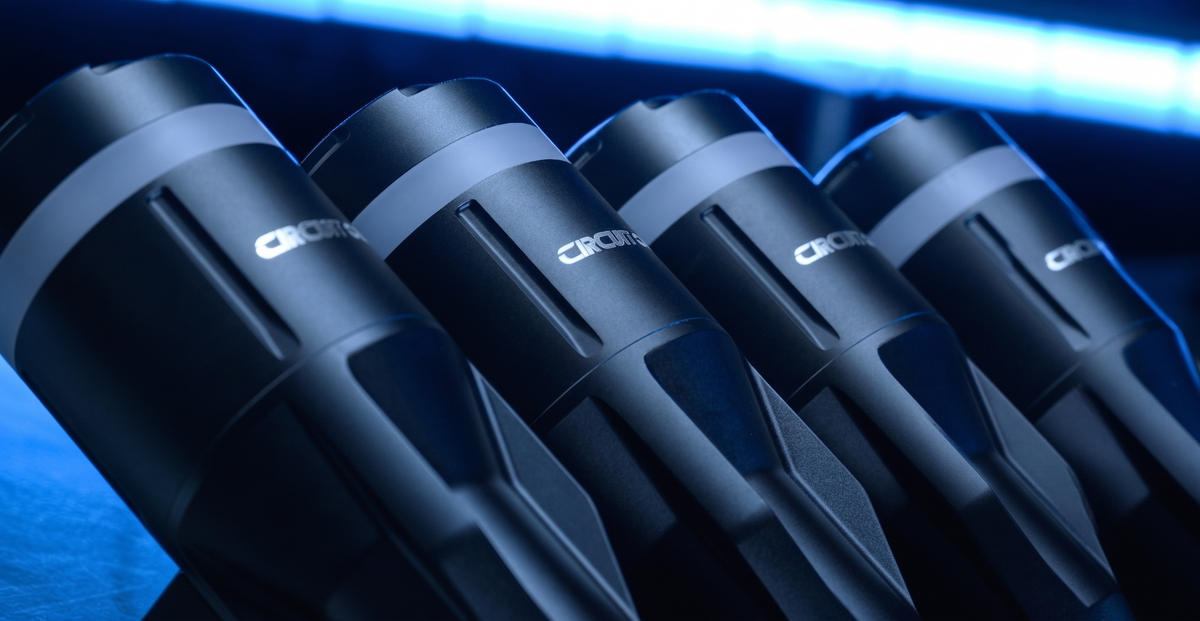

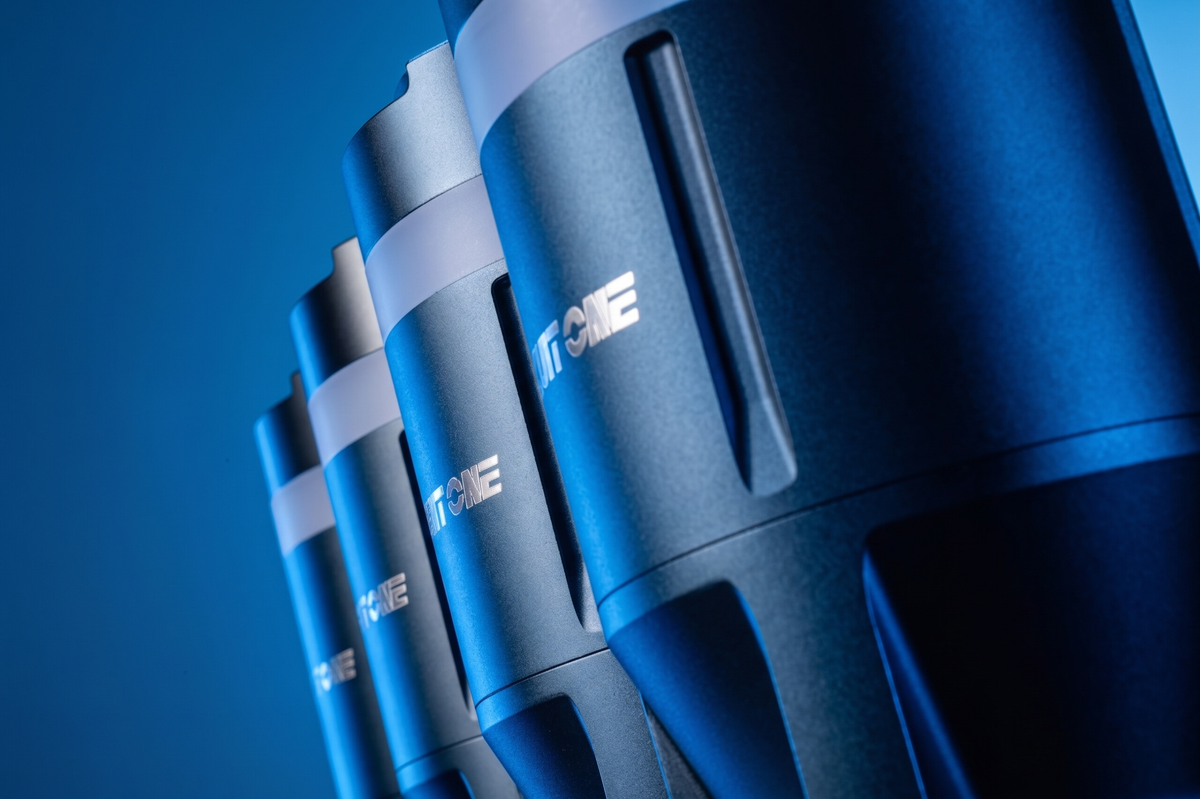

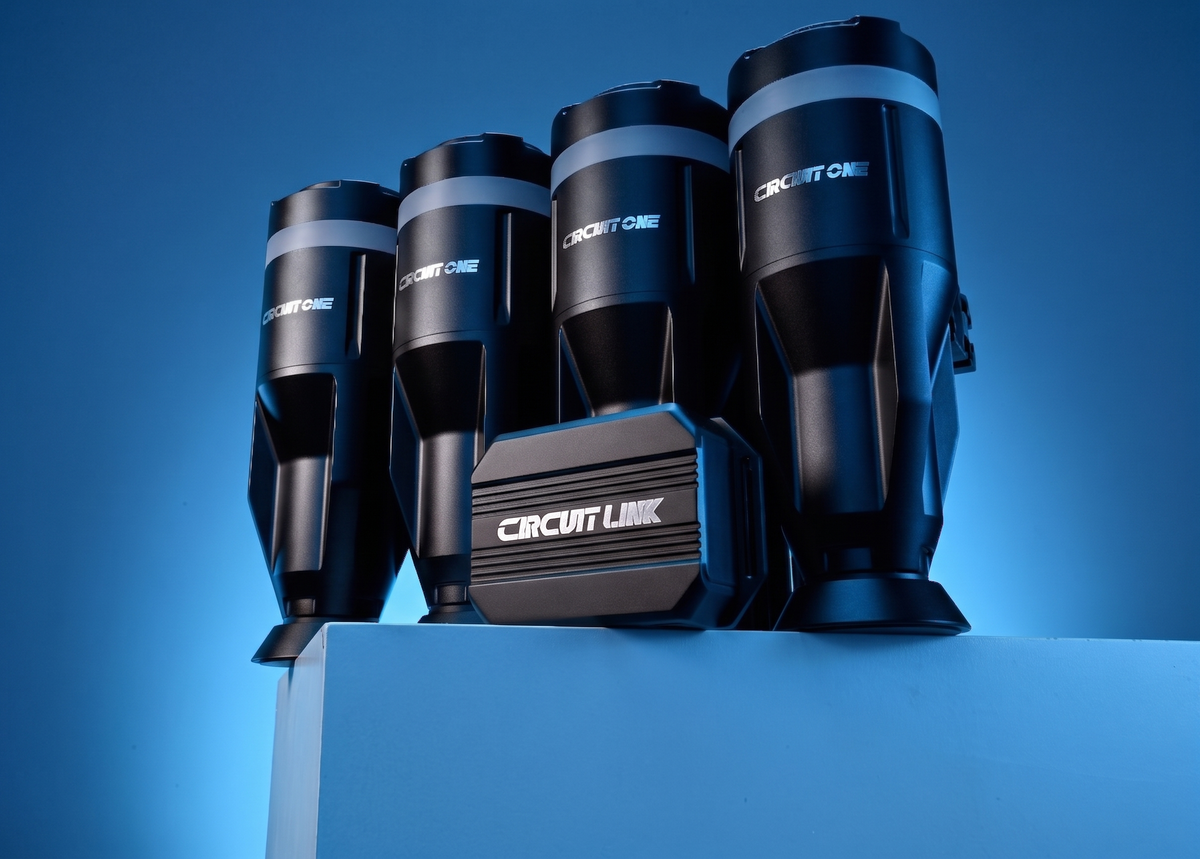

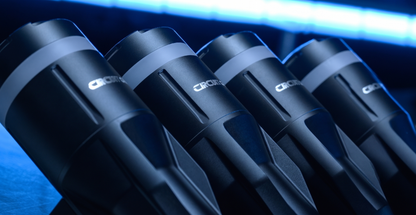

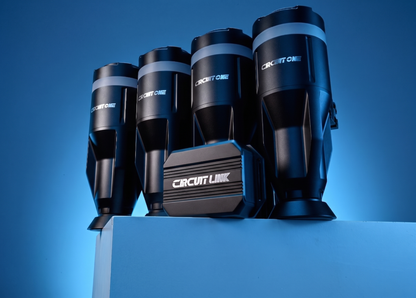

- 4 × Haptic Actuators
- 1 × LINK Control Box
- 1 × Power Supply
- 1 × Set of Connection Cables
- 1 × Screw Kit
- 1 × Set of Base Cup Mounts
- 1 × Premium Carry Case with Custom Foam Insert
- Installation Manual (downloadable)
- Free Circuit Manager Software
Warranty & Support
The Circuit One D Force 1 includes a 12-month manufacturer warranty, and Vision Velocity Tech backs every order with our standard return and refund coverage. Full policy details, timelines, and eligibility are outlined on our Return and Refund Policy page.
Need help with installation, software setup, or a warranty claim? Reach our support team directly.
✉ info@visionvelocitytech.com
🕑 Mon–Fri, 9am–5pm MST
📞 385-612-9388
